Safety Light Curtains

>
<

SA4J Type 4 safety light curtain

Product Detail

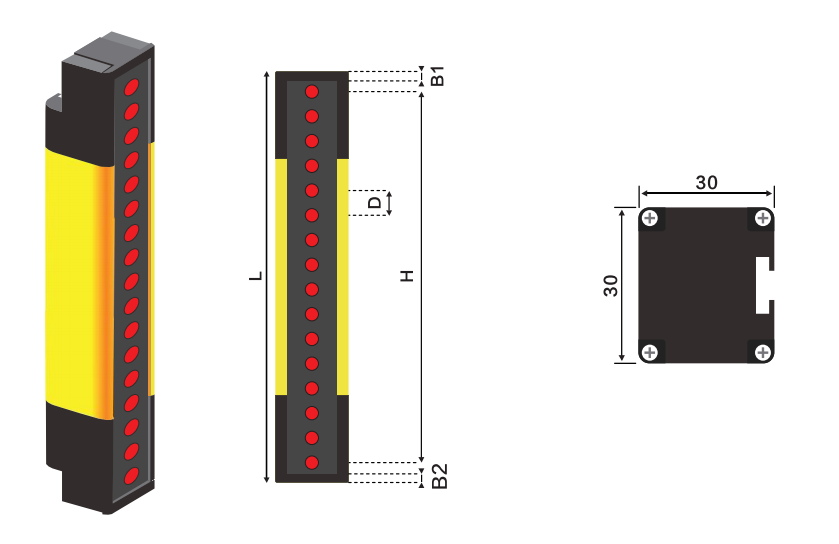

Dimensions



B1: Upper Blind Spot

B2: Lower Blind Spot

D: Optical axis spacing

H: grating protection height

L: total grating height


B1=1/2 optical axis spacing+3mm

B2=1/2 optical axis spacing+3mm

L=Number of optical axes*Optical axis spacing+6mm

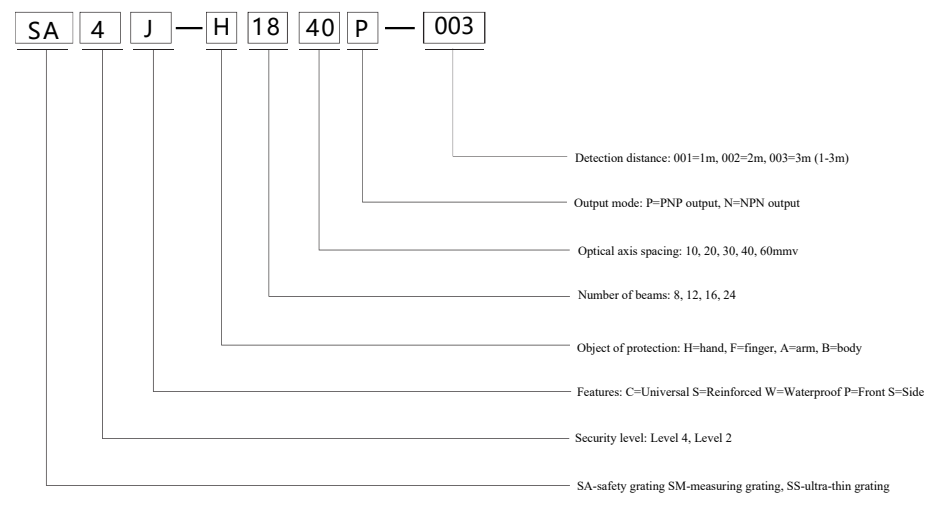

Selection rules

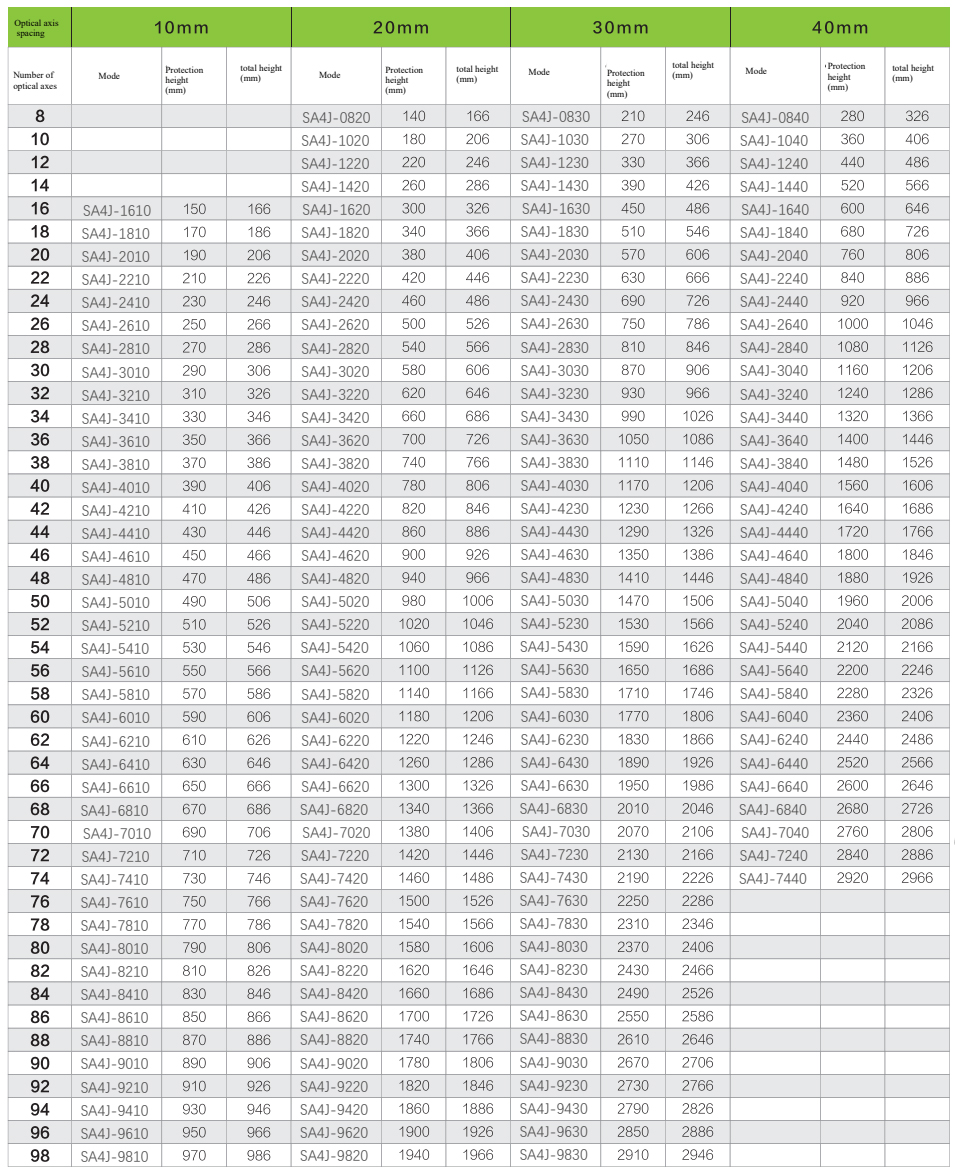

SA4J Type 4 safety light curtain selection table



Note: The optical axis spacing of this type of product includes 10mm, 20mm, 30mm, 40mm, which is not fully reflected in the selection table. If your choice is not included, please contact us for your selection.

The total height of all products in this series = (optical axis spacing * number of optical axes) + 6mm.
