SS4P Side Ultra-thin Safety Light Curtain

Product Detail

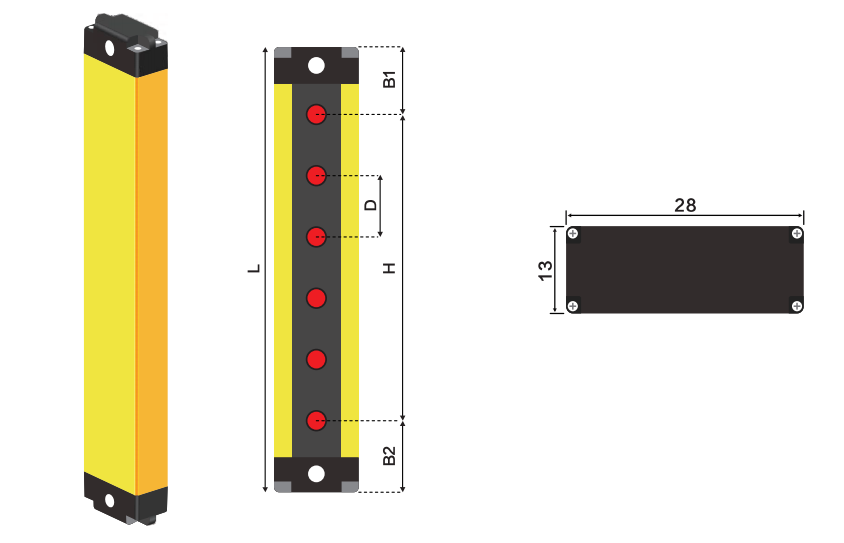

Dimensions

B1: Upper Blind Spot

B2: Lower Blind Spot

D: Optical axis spacing

H: grating protection height

L: total grating height

B1=1/2 optical axis spacing+13mm

B2=1/2 optical axis spacing+13mm

L=Number of optical axes*Optical axis spacing+26mm

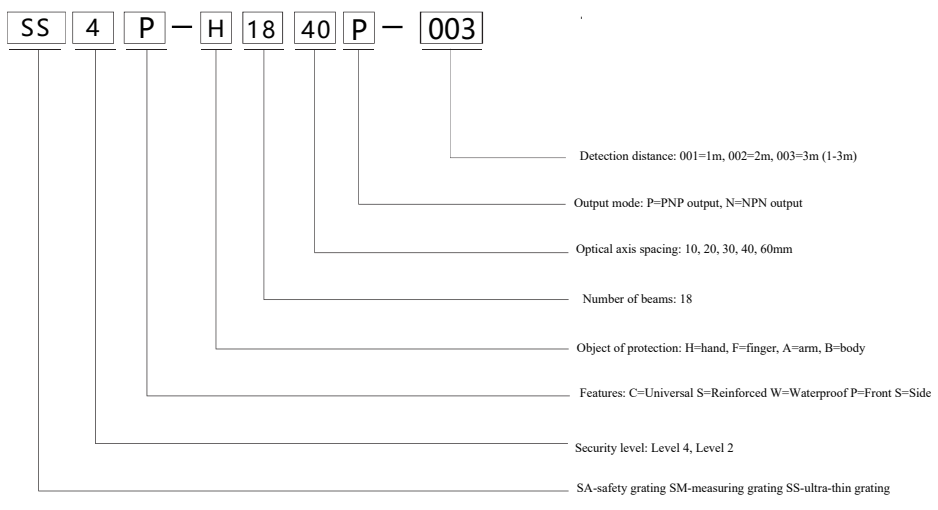

Selection rules

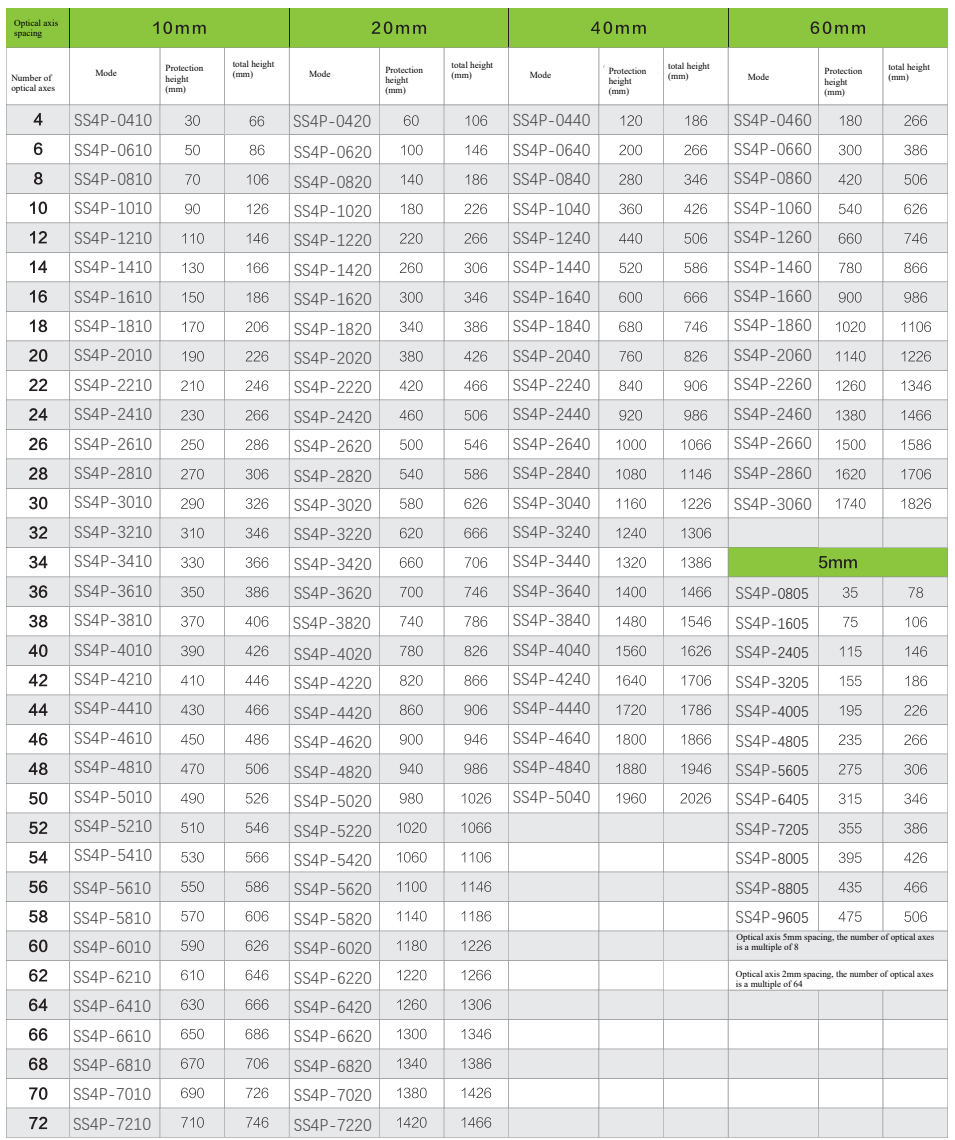

SS4P side ultra-thin safety light curtain selection table

Note: The optical axis spacing of this model includes 5mm, 10mm, 20mm, 30mm, 40mm, and 60mm, which are not fully reflected in the selection table. If your choice is not included, please contact us for your selection.

Except for 0805 and 0410, the total height of all products in this series = (optical axis spacing * number of optical axes) + 26mm.
