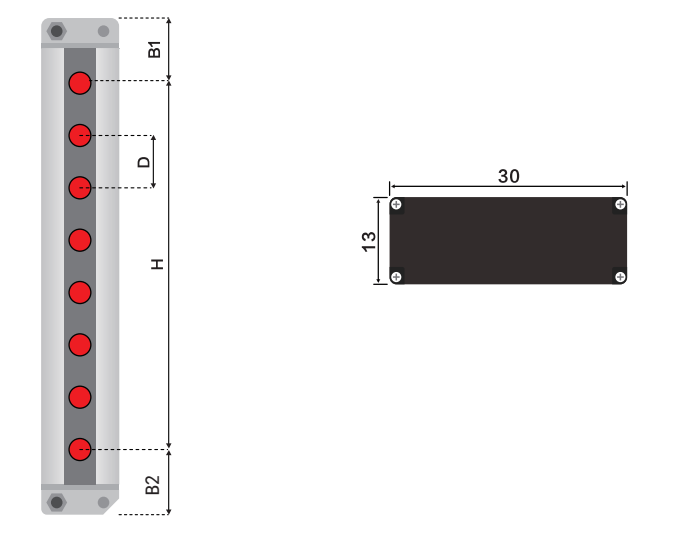

Dimensions
B1: Upper Blind Spot
B2: Lower Blind Spot
D: Optical axis spacing
H: grating protection heightL: total grating height4
B1=25mm
B2=25mm

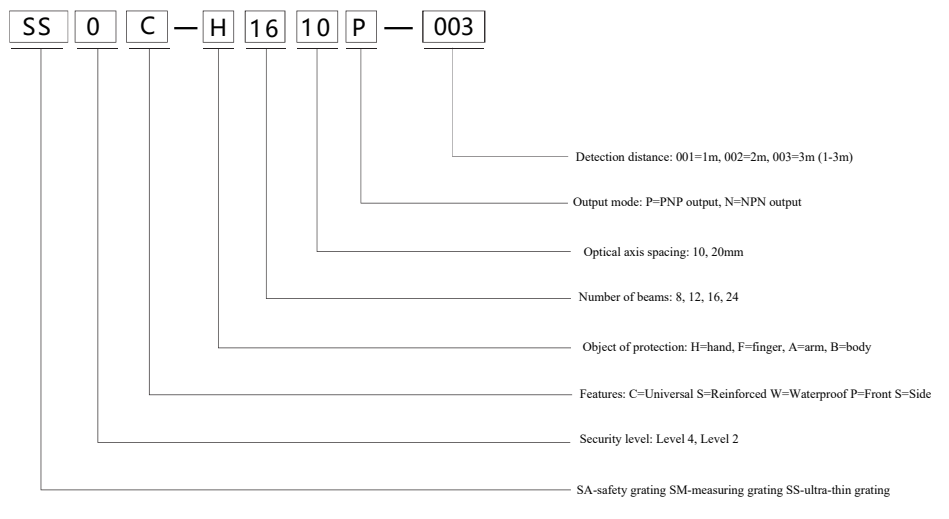

Selection rules
SS0C plastic housing safety light curtain selection table
Optical axis spacing 10mm | ||||
16 | SS0C-H1610N-002 | 150 | 190 | NPN |
16 | SS0C-H1610P-002 | 150 | 190 | PNP |
24 | SS0C-H2410N-002 | 230 | 270 | NPN |
24 | SS0C-H2410P-002 | 230 | 270 | PNP |
Optical axis spacing 20mm | ||||
6 | SS0C-H0620N-002 | 100 | 140 | NPN |
6 | SS0C-H0620P-002 | 100 | 140 | PNP |
8 | SS0C-H0820N-002 | 140 | 190 | NPN |
8 | SS0C-H0820P-002 | 140 | 190 | PNP |
12 | SS0C-H1220N-002 | 220 | 270 | NPN |
12 | SS0C-H1220P-002 | 220 | 270 | PNP |
16 | SS0C-H1620N-002 | 300 | 350 | NPN |
16 | SS0C-H1620P-002 | 300 | 350 | PNP |
28 | SS0C-H2820N-002 | 540 | 590 | NPN |
28 | SS0C-H2820P-002 | 540 | 590 | PNP |
