SA4W Waterproof Safety Light Curtain_Shenzhen Xaori Technology Co., Ltd.

Safety Light Curtains

* Domestic first IP69 waterproof and dustproof safety grating

* The deepest can be immersed in water up to 10 meters for normal use

* Anti-electromagnetic, light interference passed CE/FCC certification

* Internal self-test, LED indicator and fault light

* The default outlet is 2 meters, with metal waterproof aviation plug

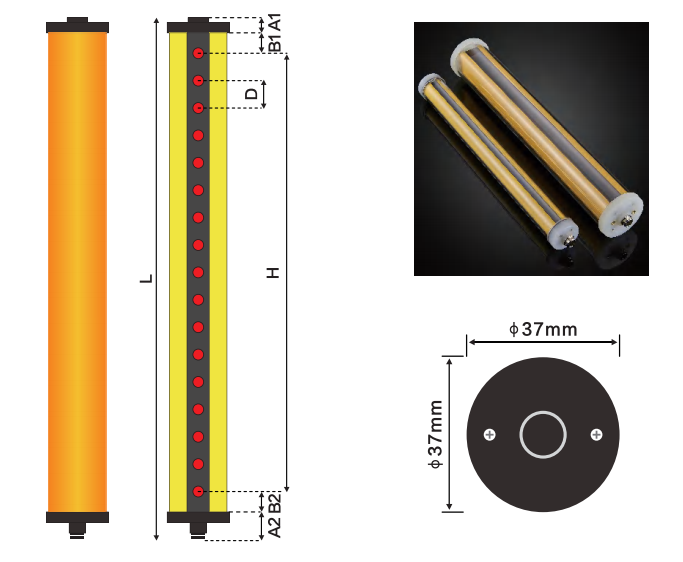

Dimensions

A1: Upper end cap

A2: lower end cap + aviation terminal

B1: Upper Blind Spot B2: Lower Blind Spot

D: Optical axis spacing

H: grating protection height

L: total grating height

A1=21mm

A2=49mm

B1=1/2 optical axis spacing

B2=1/2 optical axis spacing+27mm

H=(Number of optical axes-1)*Optical axis spacing

L=number of optical axes*spacing between optical axes+97mm (including 33mm aviation terminals)

Selection rules

* Domestic first IP69 waterproof and dustproof safety grating

* The deepest can be immersed in water up to 10 meters for normal use

* Anti-electromagnetic, light interference passed CE/FCC certification

* Internal self-test, LED indicator and fault light

* The default outlet is 2 meters, with metal waterproof aviation plug
