SA4S Enhanced Safety Light Curtain

Product Detail

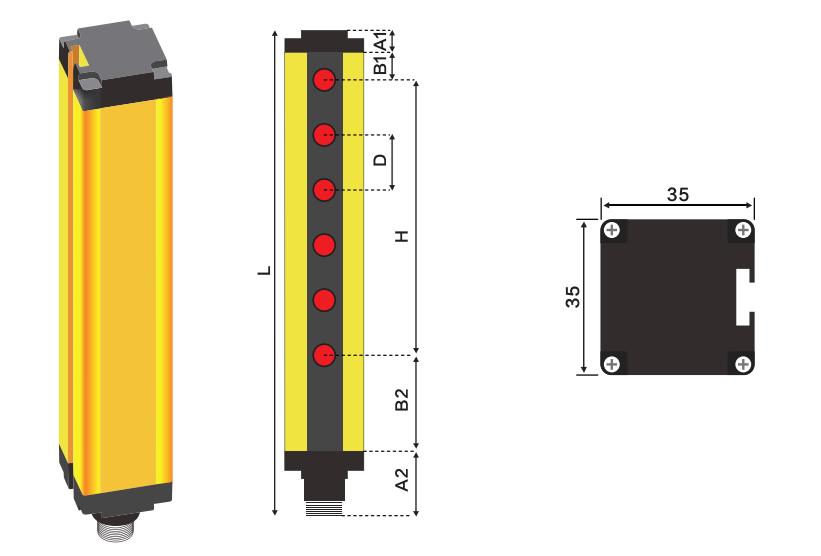

Dimensions

A1: Upper end cap

A2: lower end cap + aviation terminal

B1: Upper Blind Spot

B2: Lower Blind Spot

D: Optical axis spacing

H: grating protection height

L: total grating height

A1=10mmA2=45mm (including 33mm aviation plug)

B1=1/2 optical axis spacing B2=37mm

H=(Number of optical axes-1)*Optical axis spacing

L = number of optical axes * distance between optical axes + 92

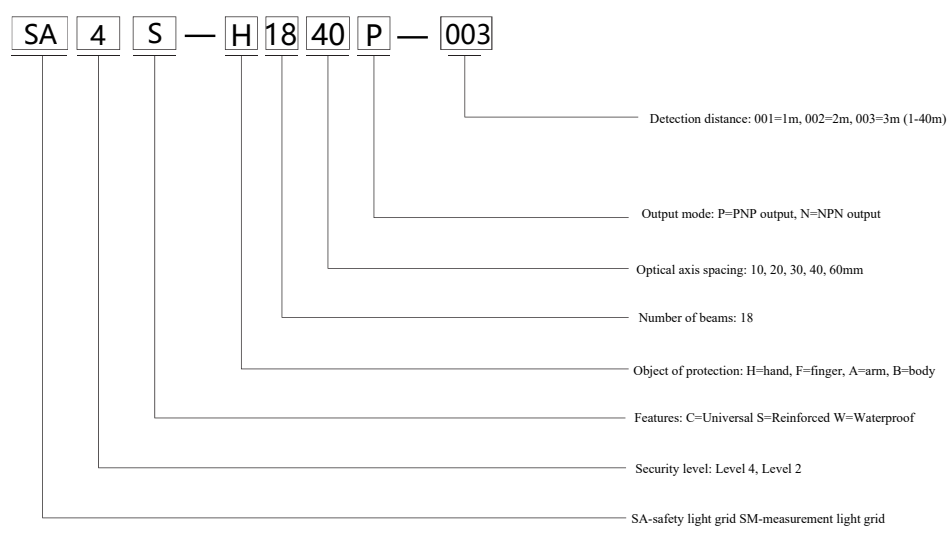

Selection rules

SA4S Enhanced safety light curtain selection table

Note:

The optical axis accuracy of this type of product includes 1mm, 2mm, 5mm, 10mm, 20mm, 30mm, 40mm, 60mm, 105mm, which are not fully reflected in the selection table. If your choice is not included, please contact us for Your choice.

The total height of all products in this series = (optical axis accuracy*optical axis quantity)+82mm.
