SA4C Standard Safety Light Curtain

Product Detail

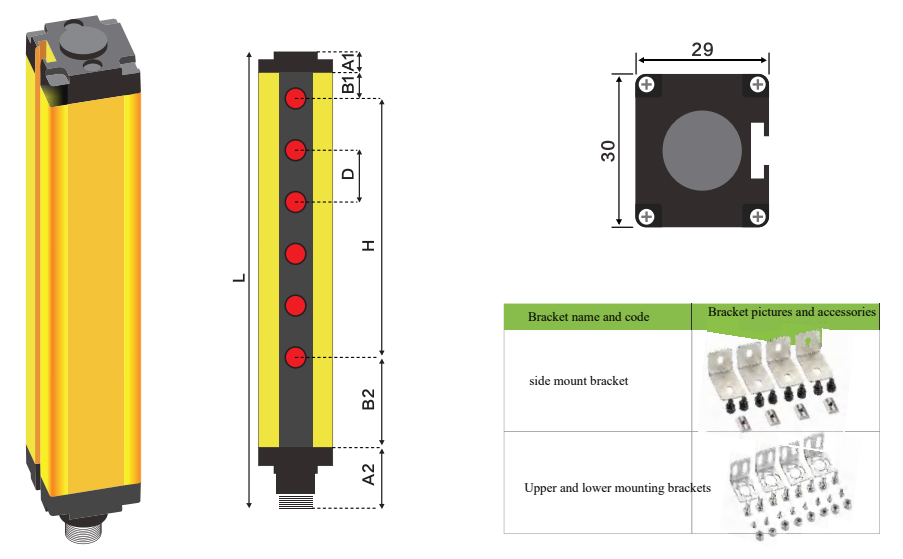

Dimensions

A1: upper end cap

A2: Lower end cover + aviation terminal

B1: upper blind spot

B2: lower blind spot

D: Optical axis spacing

H: Grating protection height

L: total grating height

A1=12mm

A2=19mm

B1=1/2 optical axis spacing

B2=1/2 optical axis spacing +27mm

H=(Number of optical axes-1)*Optical axis spacing

L=Number of optical axes * spacing between optical axes + 55mm (excluding 33mm aviation terminals)

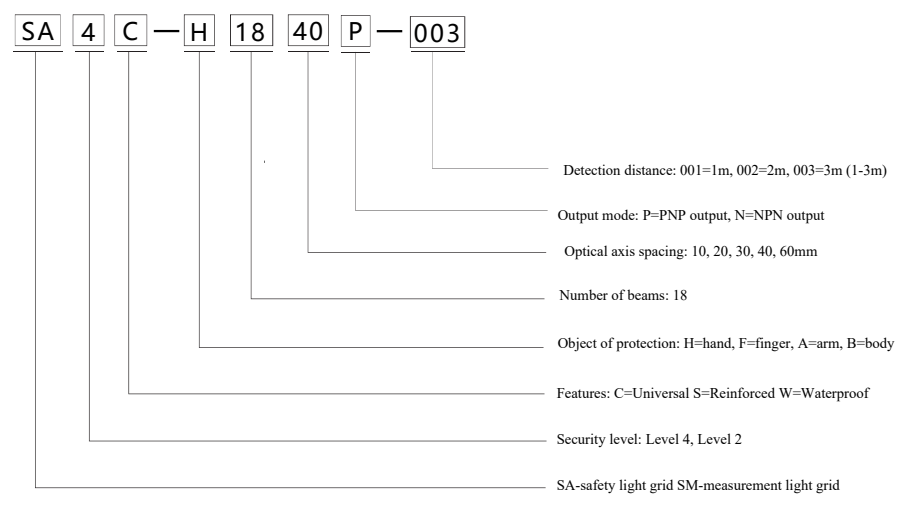

Selection rules

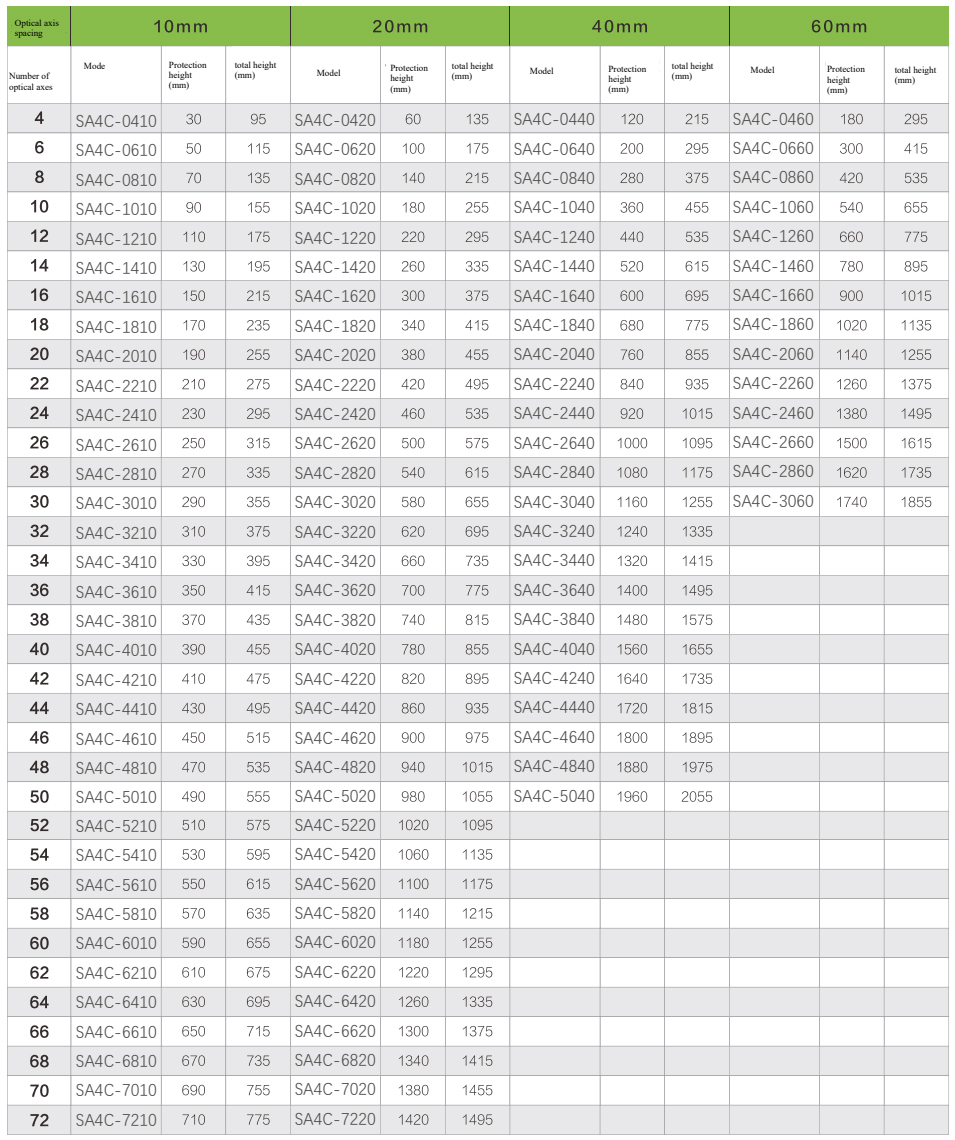

SA4C standard safety light curtain selection table

Note: The optical axis spacing of this model includes 10mm, 20mm, 30mm, 40mm, 60mm, which is not fully reflected in the selection table. If your choice is not included, you can select the model for you through the selection rules or contact us .
