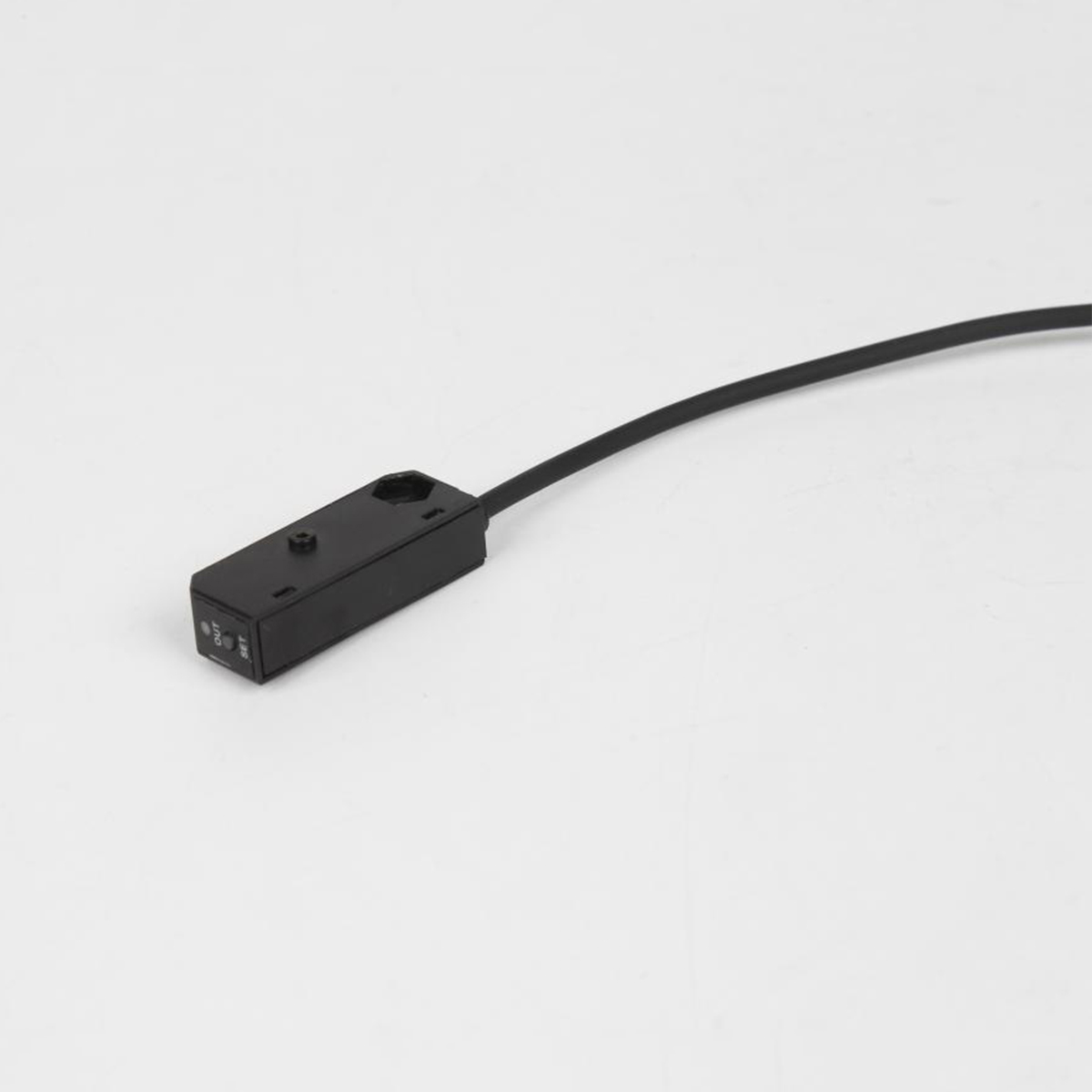

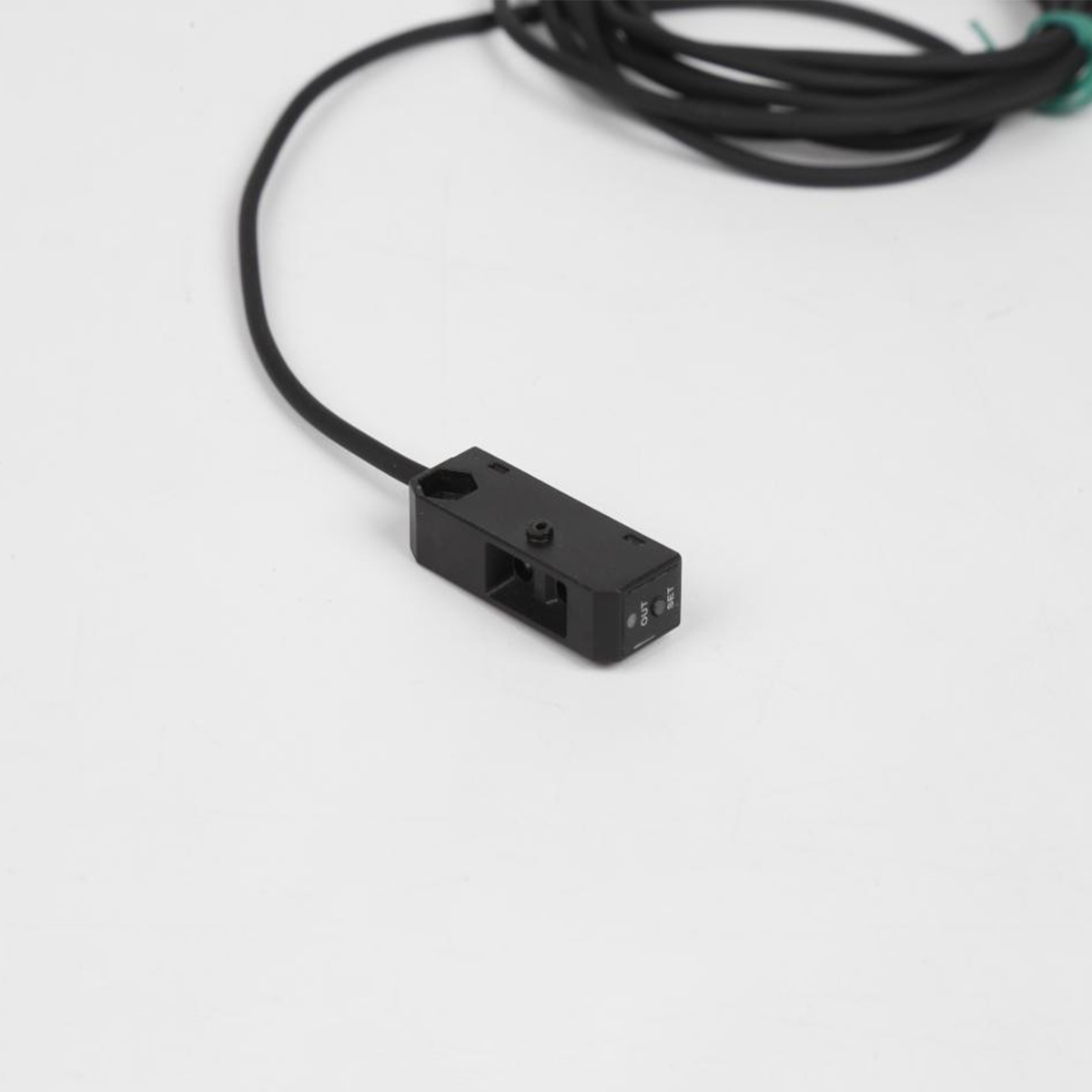

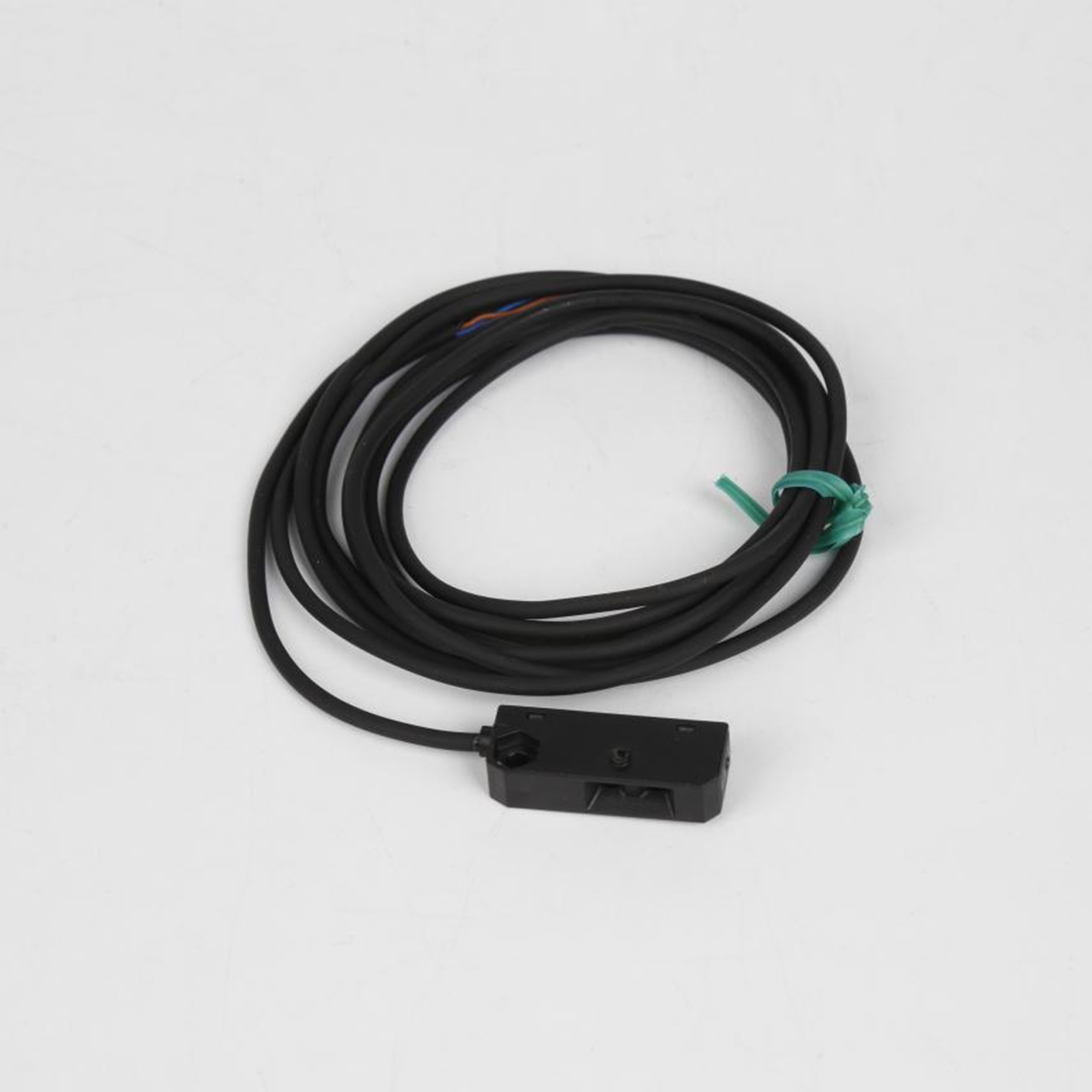

Square Photoelectric Sensor GL-A100N Series

Ultra-small size, save space;

Fingertip-sized sensor for installation in a variety of cramped environments

Long detection distance;

This series is small in size but can still detect long distances, so it can also function on wide conveyors.

-Response time up to 1ms;

-Affordable and durable.

-Two-point calibration, which can automatically set the sensitivity, just press the sensitivity setting button twice, once when it is placed and once when it is not placed;

Product Detail

Product Features:

Ultra-small size, save space;

Fingertip-sized sensor for installation in a variety of cramped environments

Long detection distance;

This series is small in size but can still detect long distances, so it can also function on wide conveyors.

-Response time up to 1ms;

-Affordable and durable.

-Two-point calibration, which can automatically set the sensitivity, just press the sensitivity setting button twice, once when it is placed and once when it is not placed;

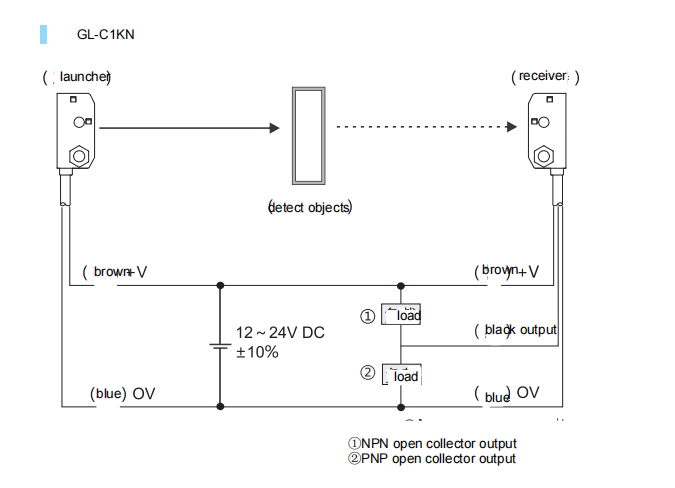

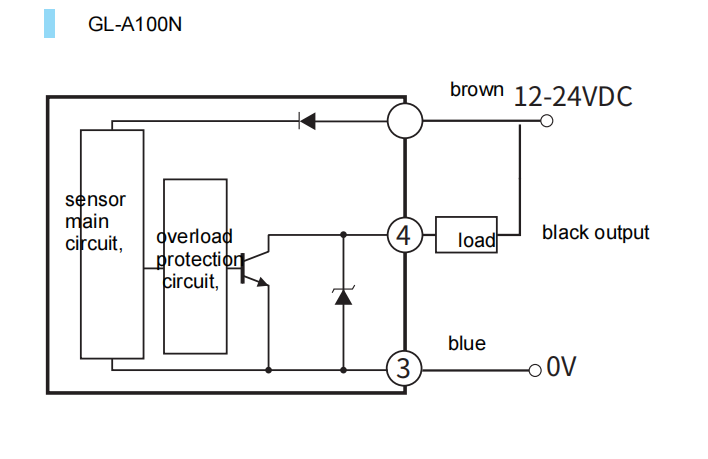

input/output circuit:

Product Specifications:

Model	NPN	GL-A100N	GL-C1KN

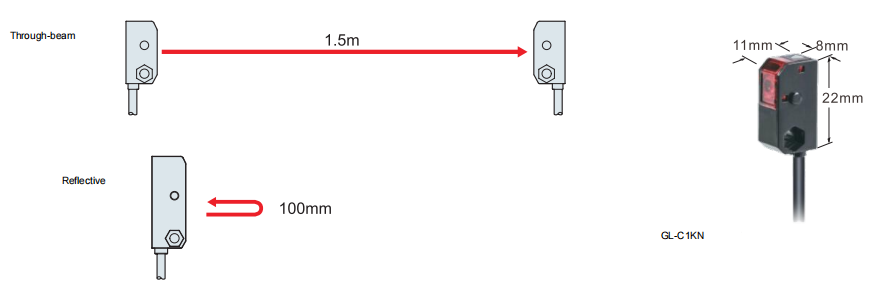

Type		Reflective	Through-beam
Detection distance		10cm	1.5m
light source		Infrared LED	940nm infrared LED
Response time		1ms	3ms max
control output	NPN output	NPN open collector 24V; output max; 50mA Residual voltage 1.5V	NPN open collector 24V; output max; 50mA Residual voltage 1.5V
protect the circuit		Reverse electrode protection (power supply), overcurrent protection (output)	Reverse polarity protection, short circuit protection
Rated value	voltage	24 VDC ± 10%, ripple voltage (P-P); 10% max	12~24V DC
NPN		Normal: 360 mW max (at 24V, 15mA max)	ormal: 360 mW max (at 24V, 15mA max)
Working environment brightness		Fluorescent lamp; maximum 20000lux; sunlight: maximum 5000lux	Incandescent lamp: up to 5000lux, daylight: up to 20000lux
Working temperature		-20 to +55°C (no freezing)	-20 to +55°C (no freezing)
Working environment humidity		35 to 85%RH (non-condensing)	35 to 85%RH (non-condensing)
Vibration resistance		10 to 55Hz. Compound amplitude 1.5mm. X, Y, Z axis directions for 2 hours each	10 to 55Hz. Compound amplitude 1.5mm. X, Y, Z axis directions for 2 hours each
shock resistance		500 m/s²2, 3 times each in X, Y, and z directions	500 m/s²2, 3 times each in X, Y, and z directions
Shell material		polycarbonate
size		32.5mm(H)×12mm(W)×8mm(D)	-
weight		About 21.5g	-

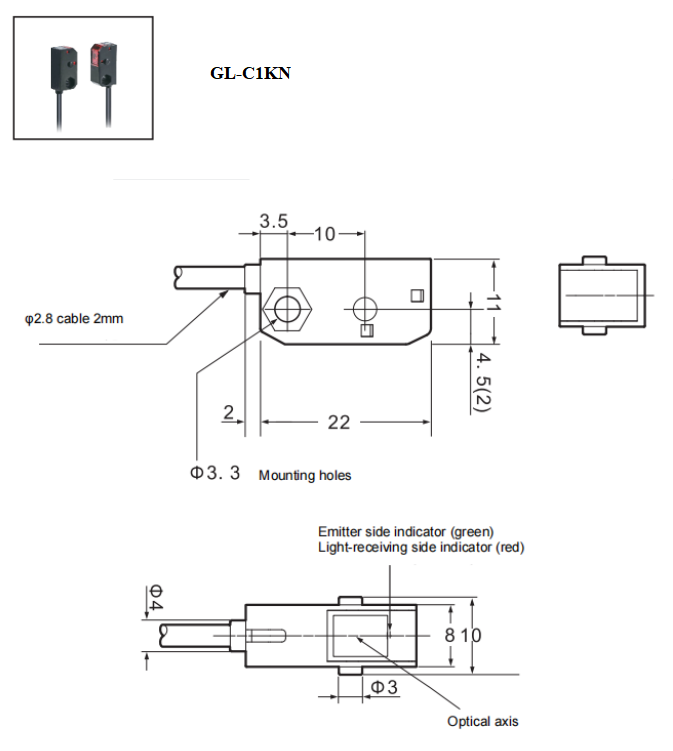

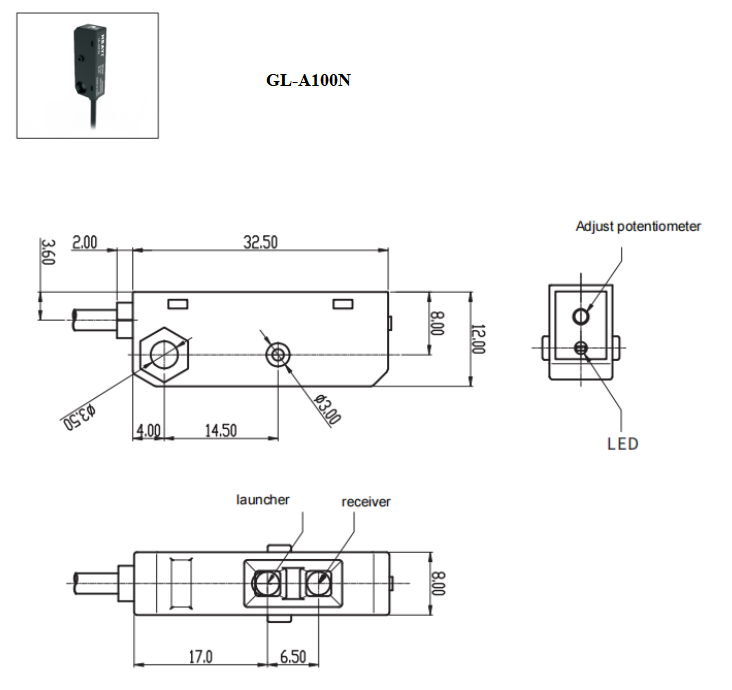

Dimensions
