Type

Type K

Type L

Type T

Type Y

Type F

Type R

Detection distance

5mm (slot width)

Standard test substance

Opaque objects above 0.8*1.2mm

Repeatability

Below 0.03mm

output mode

NPN or PNP open collector

switch mode

L.on (light receiving action)/D.on (light blocking action) can be switched

indicator light

The light is off when an object is detected, and the light is on when there is no object

response frequency

3KHz

light source

infrared light

Operating Voltage

5~24V DC

Residual voltage

1V or less (when the load current is 50mA)

current consumption

≤8mA

protect the circuit

Surge Protection, Reverse Polarity Protection

ambient luminosity

Illuminance of light-receiving surface Incandescent lamp: 1000lux or less

ambient temperature

Working: -25℃~+55℃ Storage: -30℃~+80℃, no freezing

environment humidity

Working: 5%~85%RH Storage: 5%~95%RH, no condensation

Withstand voltage

AC, 1000V for 1 minute, between all power connection terminals and the case

Vibration resistant

10~55Hz, amplitude 1.5mm, X, Y, Z directions for 2 hours each

Insulation resistance

Between all power connection terminals and the case, more than 20MΩ (based on DC250V)

Protection class

lP50

material

PC

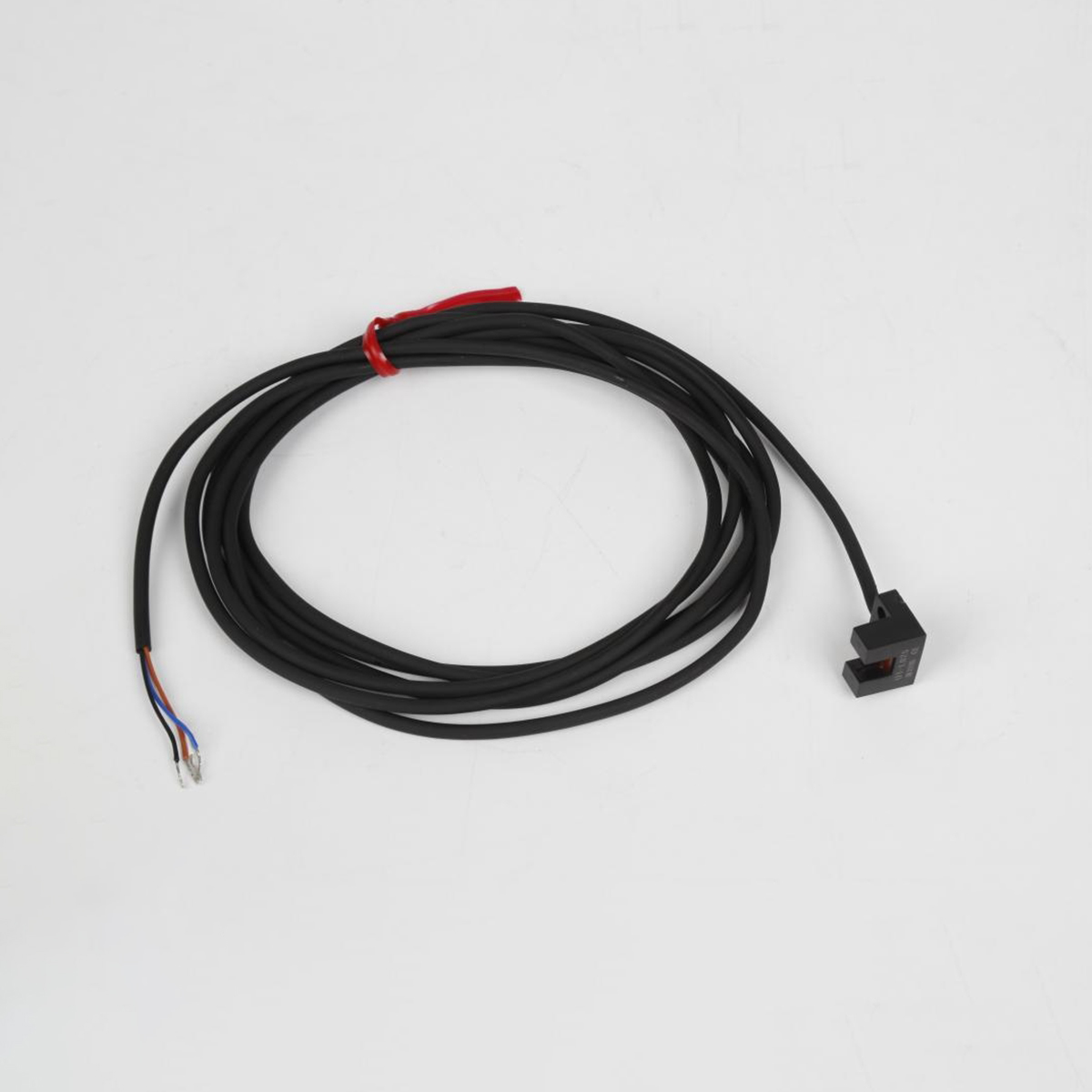

Way out

2M4 core cable

Model NPN

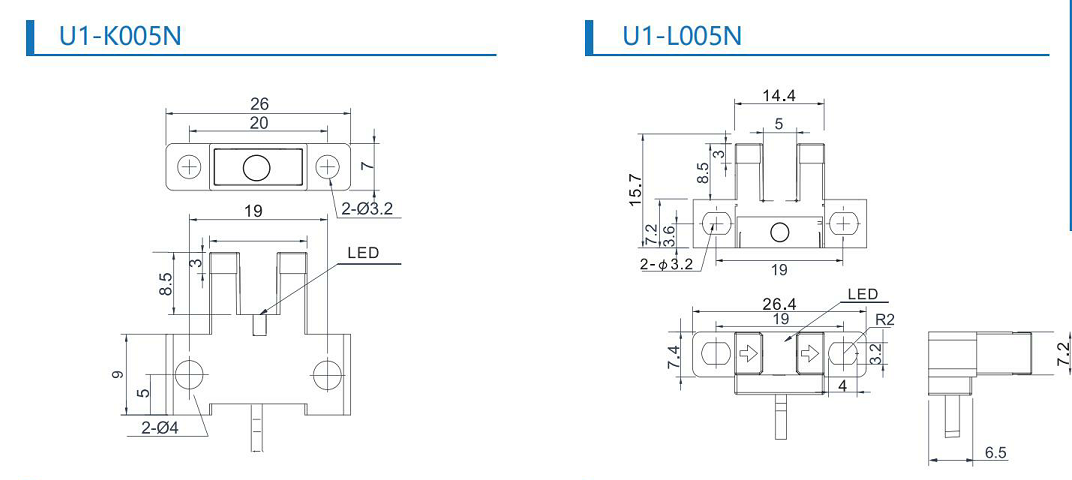

U1-K005N

U1-L005N

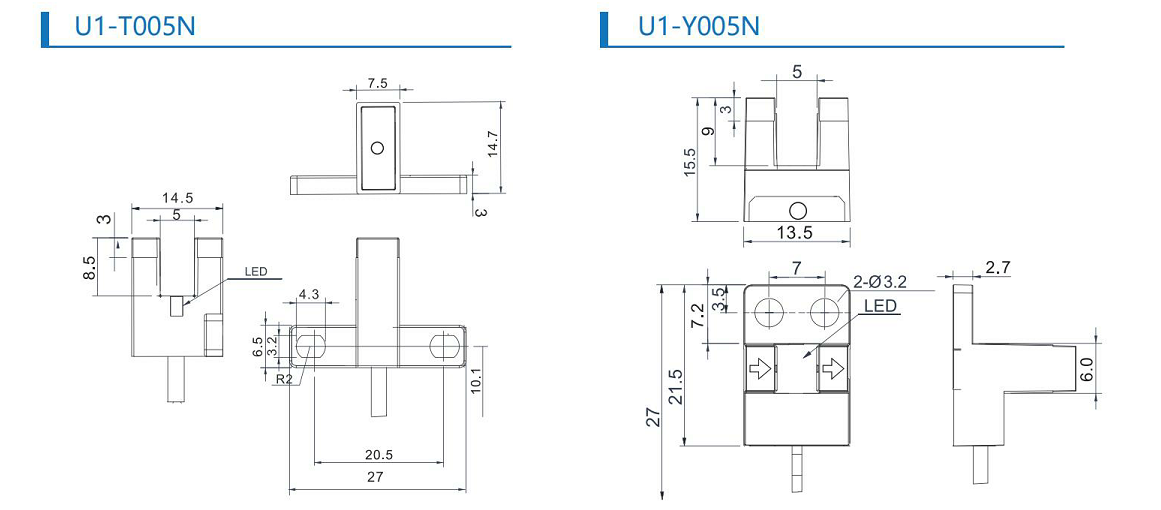

U1-T005N

U1-Y005N

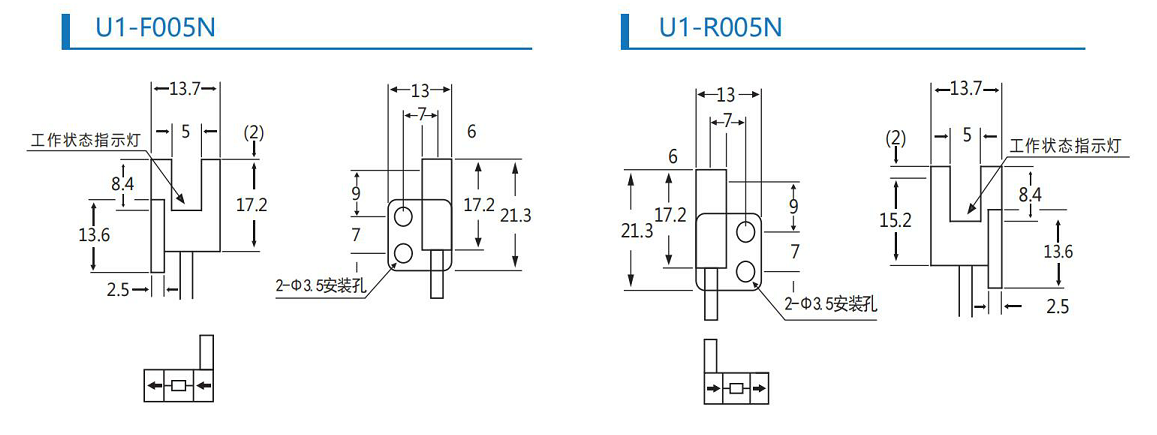

U1-F005N

U1-R005N
