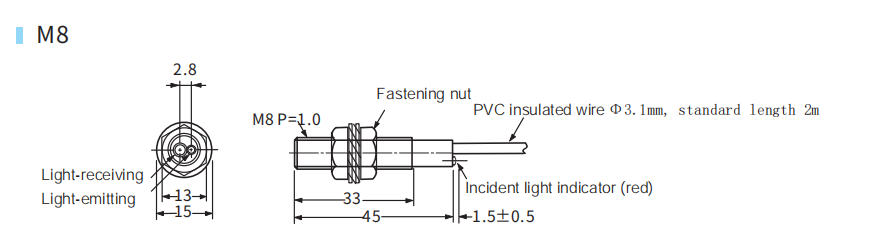

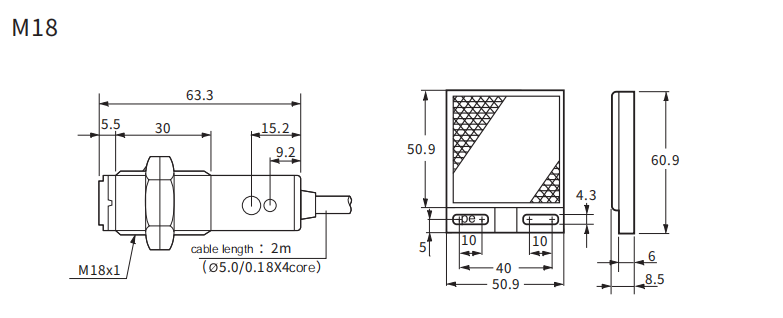

Type | M8 | M12 | M18 |
Model | C1-A03008N | C1-A03008P | C1-A15012N | C1-A15012P | C1-40018N | C1-40018P | C1-11018N | C1-11018P |
Detection method | Diffuse reflection type | Diffuse reflection type | Diffuse reflection type | Diffuse reflection type |
output method | NPN | PNP | NPN | PNP | NPN | PNP | NPN | PNP |
Detection distance | 35mm (white paper 30*30mm) | 150mm (white paper 100*100mm) | 400mm (white paper 200*200mm) | 100mm (white paper 100*100mm) |
Hysteresis | 20% or less of the detection distance | 20% or less of the detection distance | 20% or less of the detection distance |
Light source | Infrared photodiode ( 950nm ) | Infrared photodiode ( 950nm ) | Infrared photodiode ( 950nm ) |
voltage | DC12-24V±10%, pulsation (P-P) below 10% | DC12-24V±10%, pulsation (P-P) below 10% | DC12-24V±10%, pulsation (P-P) below 10% |
current consumption | Below 25mA | Below 25mA | Below 25mA |

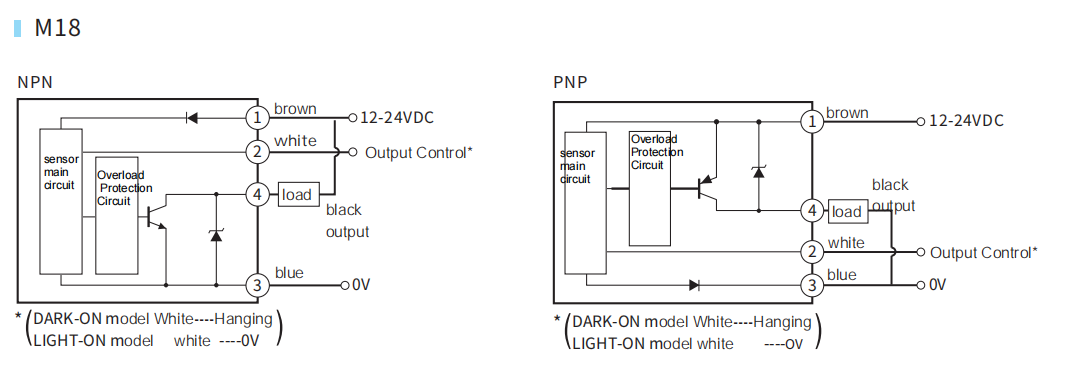

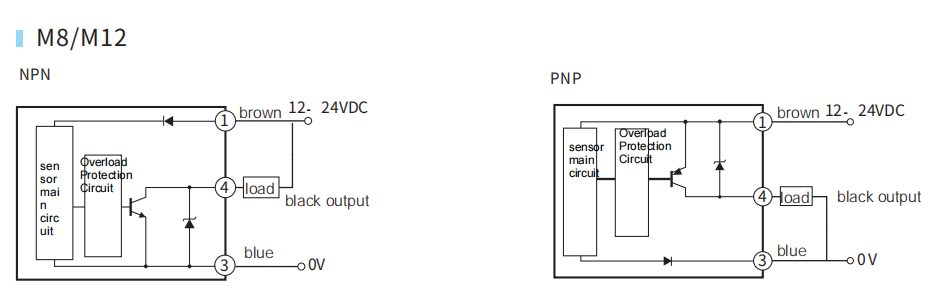

control output | Load power supply voltage DC24V or less, load current less than 80mA (residual voltage less than 1V), NPN/PNP voltage output type |
protection circuit | Surge protection circuit, short circuit protection, reverse polarity protection |
Response time | Action & reset each less than 3ms | Action & reset each 1.0ms or less | Action & reset each 1.5ms or less |
Environmental Illumination Impact | Light-receiving surface illuminance Incandescent lamp: 3,000lx or less, sunlight: 10,000lx or less |
temperature | Working temperature: -25~+55℃, storage temperature: -30~+70℃ (no freezing and condensation |
humidity | Working humidity: 35∽85%RH, storage temperature: 35∽+95%RH (no condensation) |
Insulation resistance | More than 20MΩ (DC500V megohmmeter) between the charging part and the case |
Withstand voltage | AC1000V 50~60Hz 1min between the charging part and the case |
Anti-vibration (durable) | 10~55Hz, up and down amplitude 1.5 mm, X, Y, Z directions for 2h |
Impact (durable) | 500m/S², 3 times in each direction of X, Y and Z |
protection structure | IEC standard IP66 |
Connection method | Lead-out type (standard lead length 2m) |
weight | About 80g | About 120g | About 120g |
Material shell | Housing: Stainless Steel, Emitter/Receiver: PC | Housing: nickel-plated copper, emitting/receiving part: PC | Housing: nickel-plated copper, emitting/receiving part: PC |
