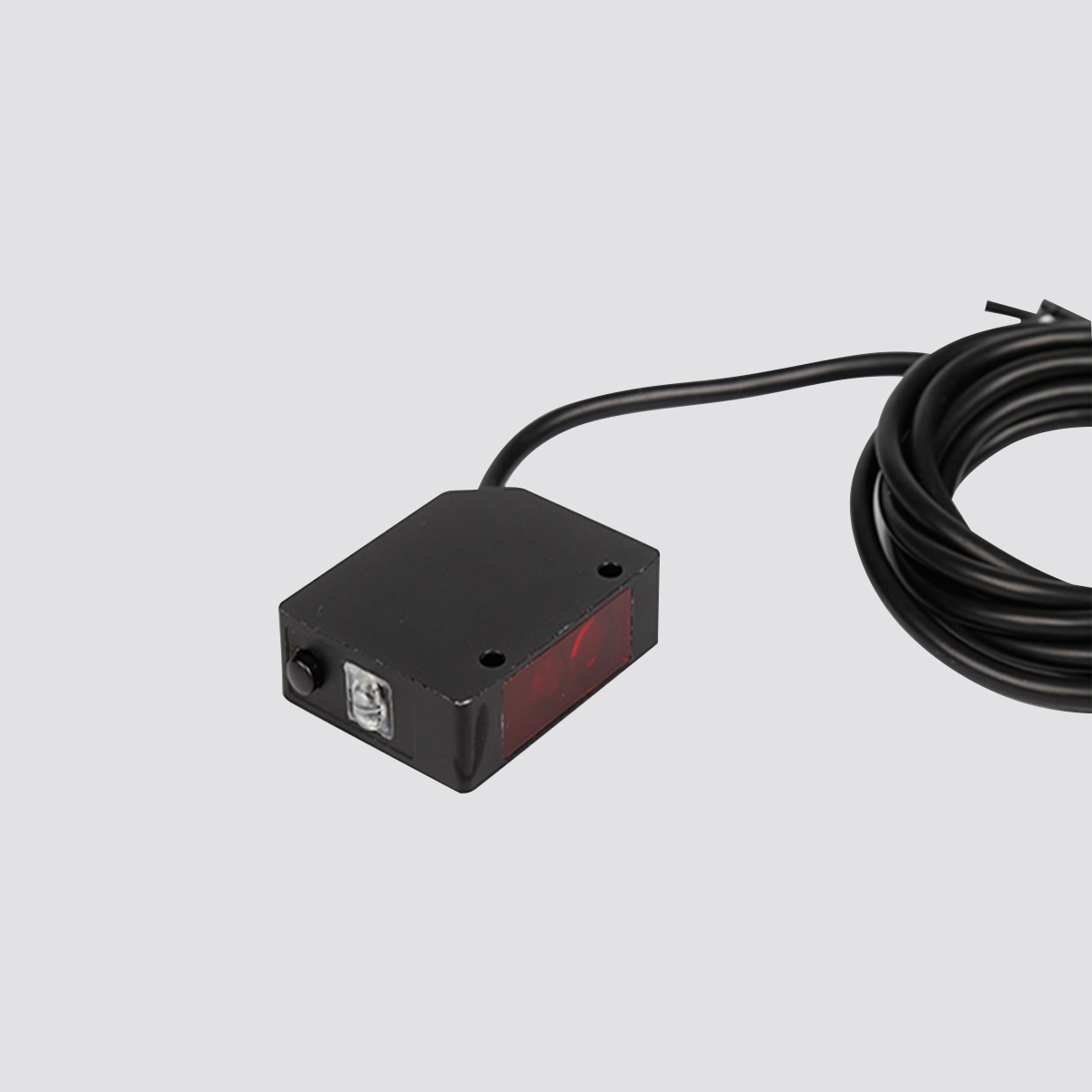

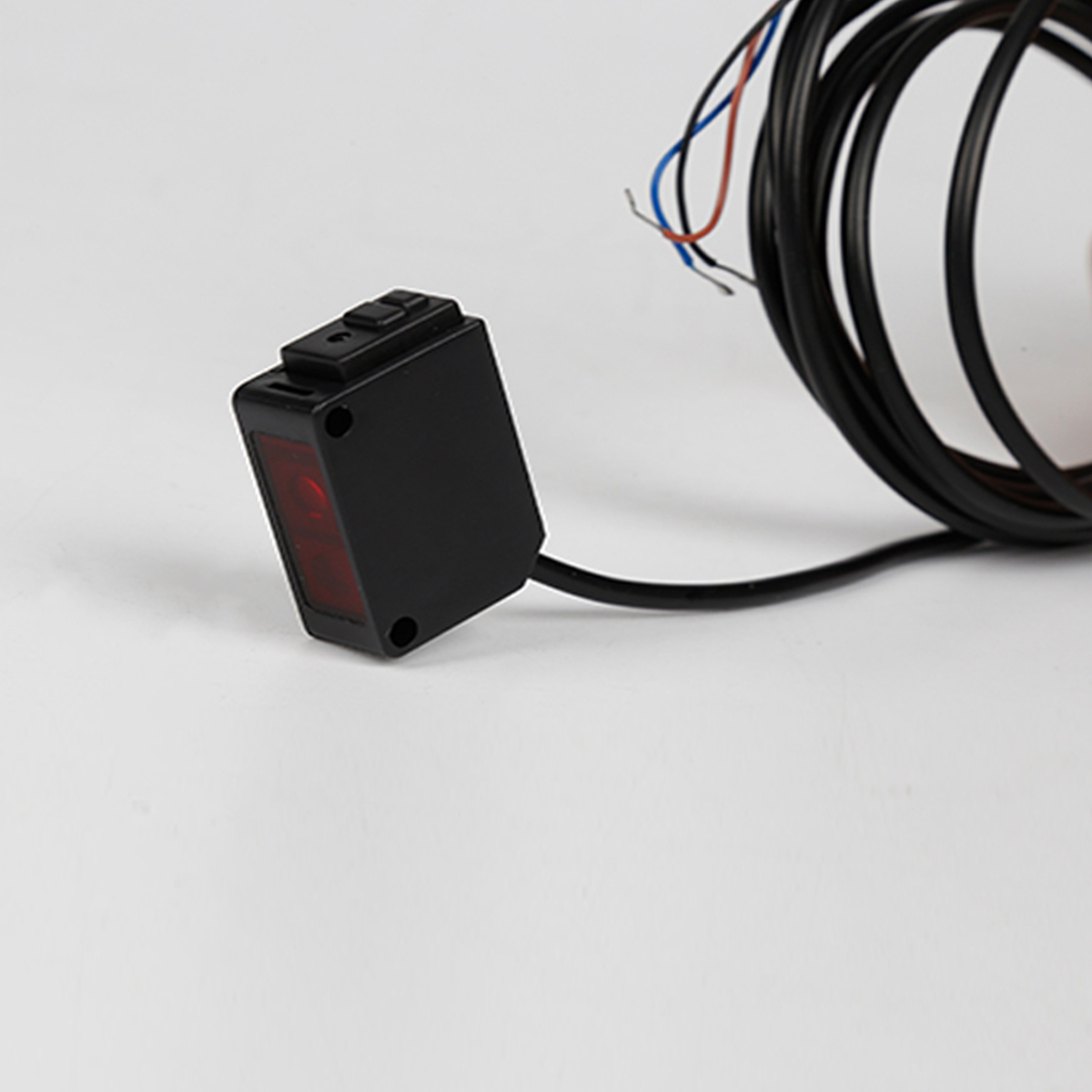

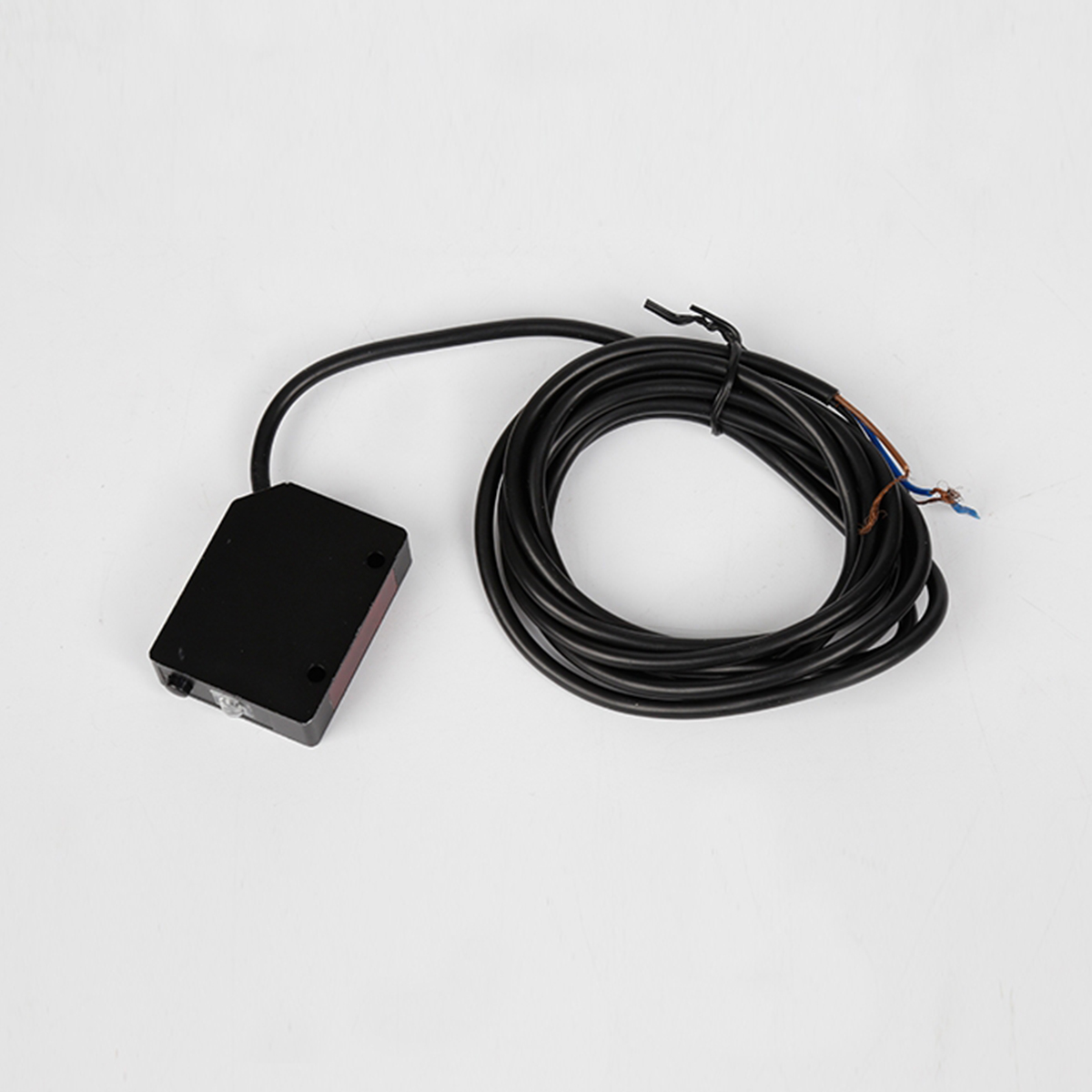

Selection reference table:

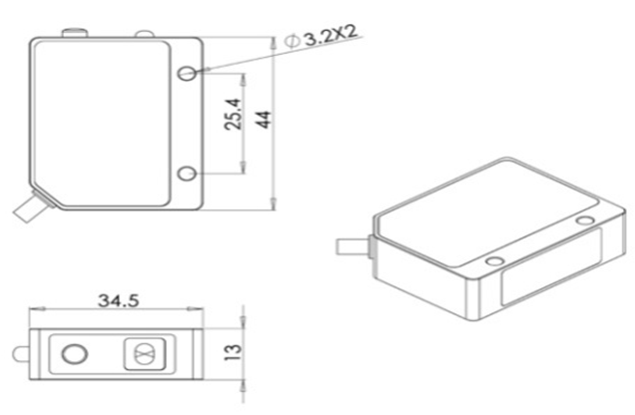

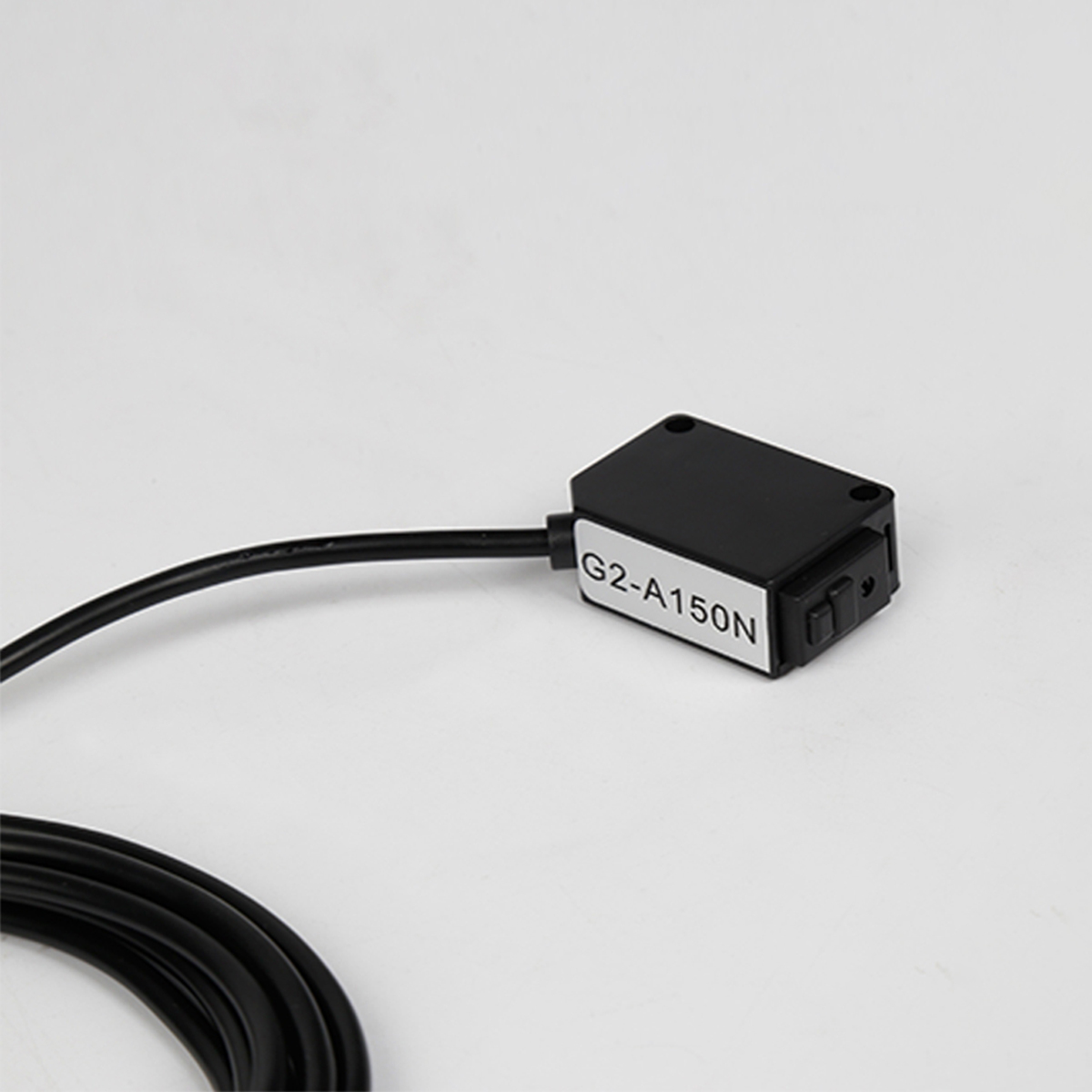

G2-A specification parameters:

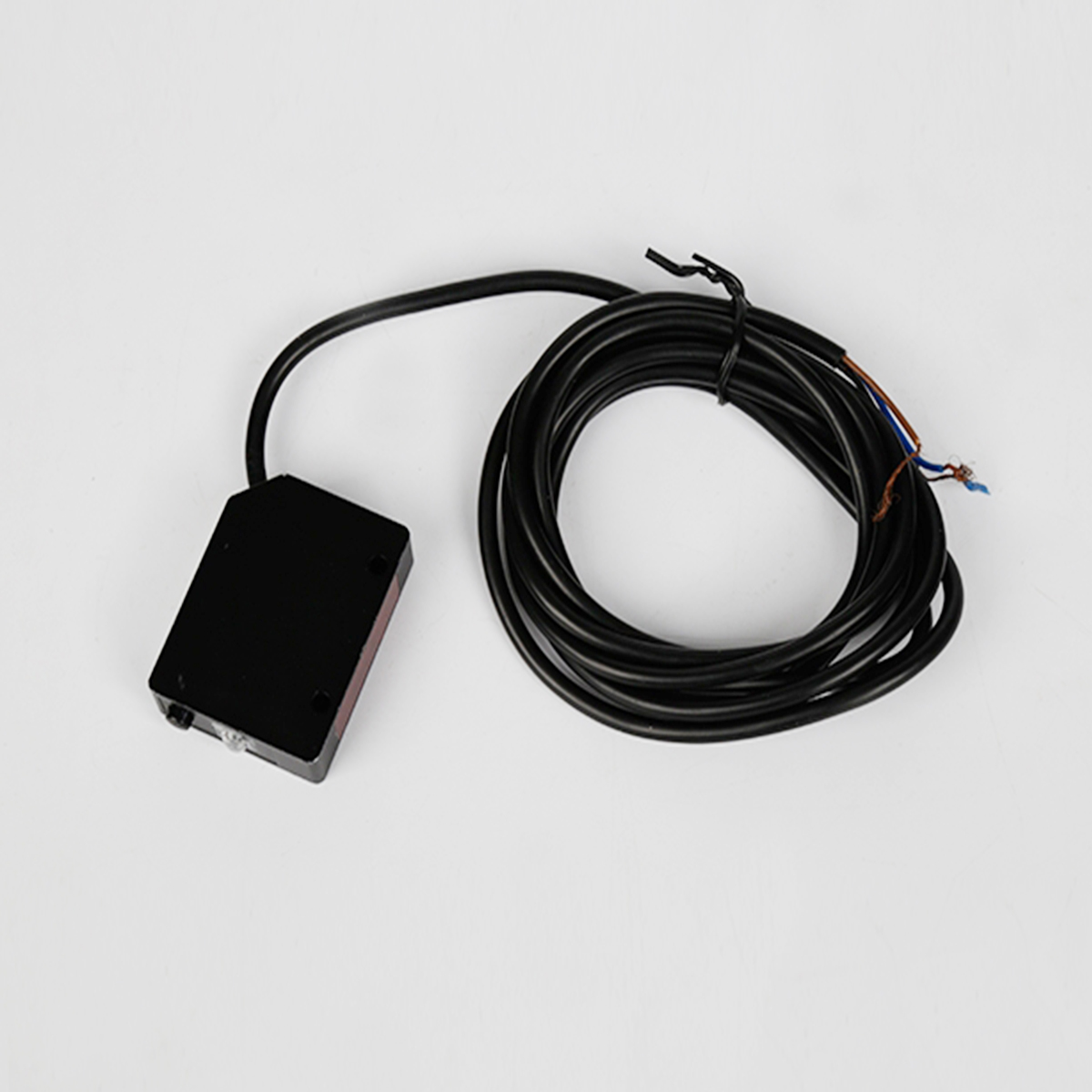

Wiring mode:

Brown line-10 ~ 24vdc

Blue line-0vdc

Black line ----NPN output

White line ----PNP output

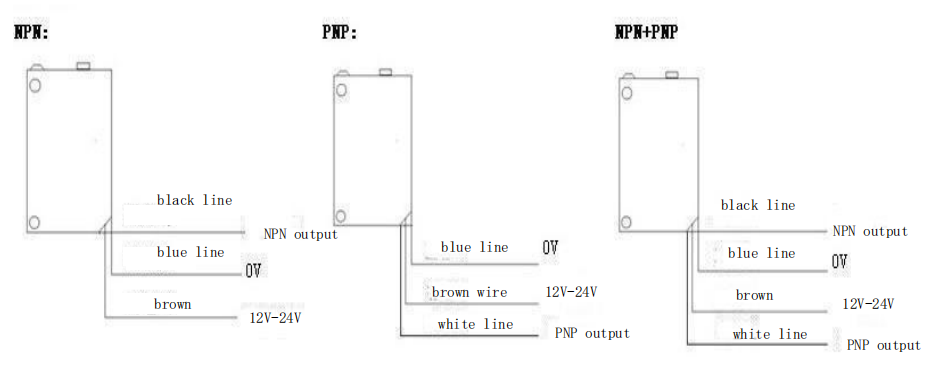

Wiring Drawings

Setting method:

1.Single-point setting: after installation and fixation, aim the detection surface of the sensor at the detected object, press the setting button for 1~3 seconds and then release it, and the indicator light flashes quickly, and the setting is completed.

2.Normally open and normally closed switch: hold the button for 10-15 seconds and then release it, the indicator light flashes quickly, and the mode switch is successful.

Use tips and suggestions:

1.Please do not direct strong light into the receiving and emitting mirror of the sensor.

2.During use, if the receiving and emitting mirror surface of the sensor is condensed or contaminated with oil or dust, please wipe the mirror surface with clean, dry and soft cloth, which can restore normal work.

3.If the sensor works in a working environment where oil stains or dust spread, please keep the mirror of the sensor clean.

4.If there are frequent large-scale light changes in the use environment, or there are many highly reflective items, or people or materials will pass through the opposite side of the sensor, it is recommended to set a fixed light shield on the opposite side of the sensor to ensure the reliability.

product assurance

1.Shelf life: From the date of shipment of this product, the shelf life is one year. If the product fails due to quality problems, the product will be exchanged for free within one year.

2.Non-warranty scope: the product performance and specifications are defined in the manual, and only the specifications and performance of this manual are used for warranty. Our company can provide technical support and suggestions for improvement for customers' improper use or mismatch of specifications and models, but it does not promise unconditional warranty.
