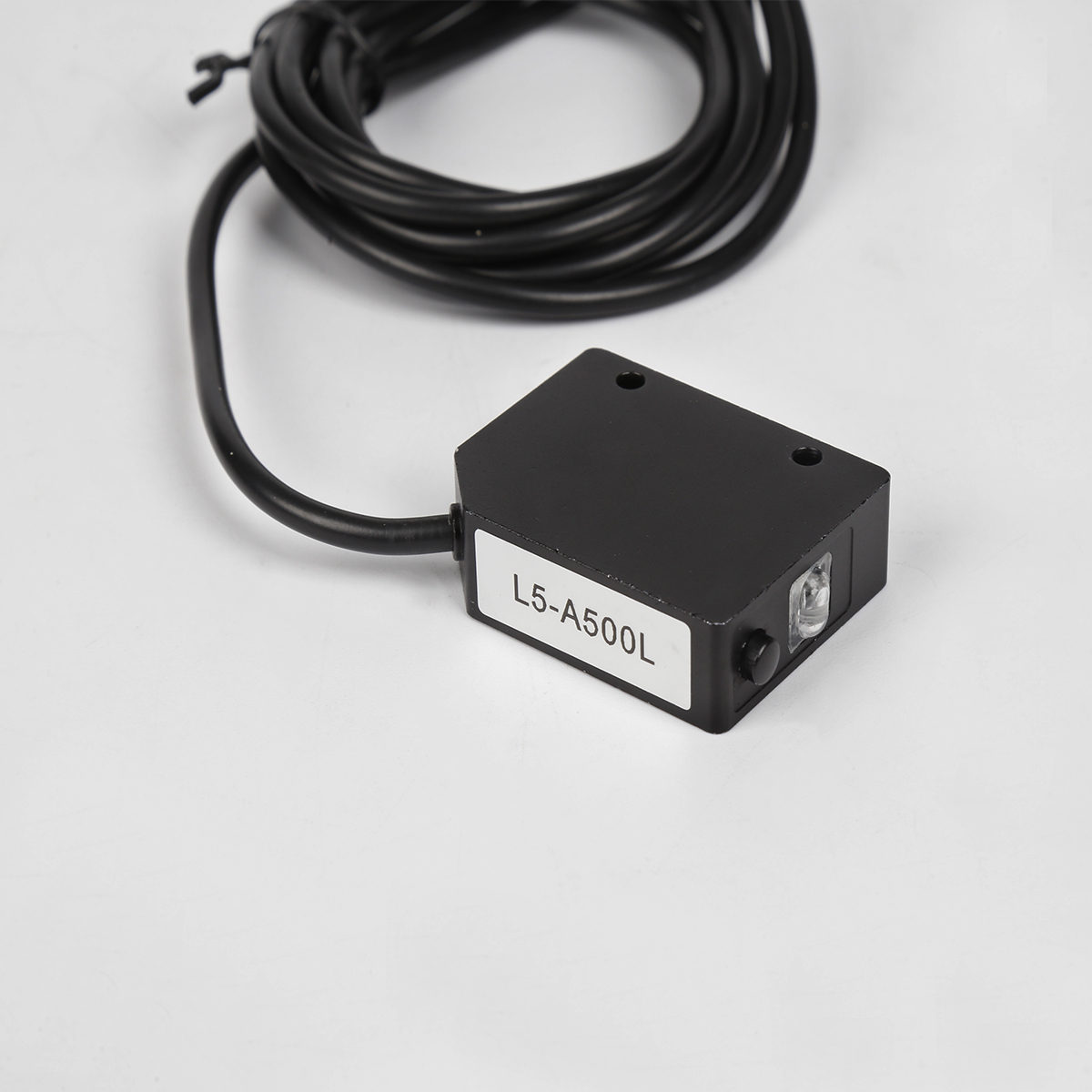

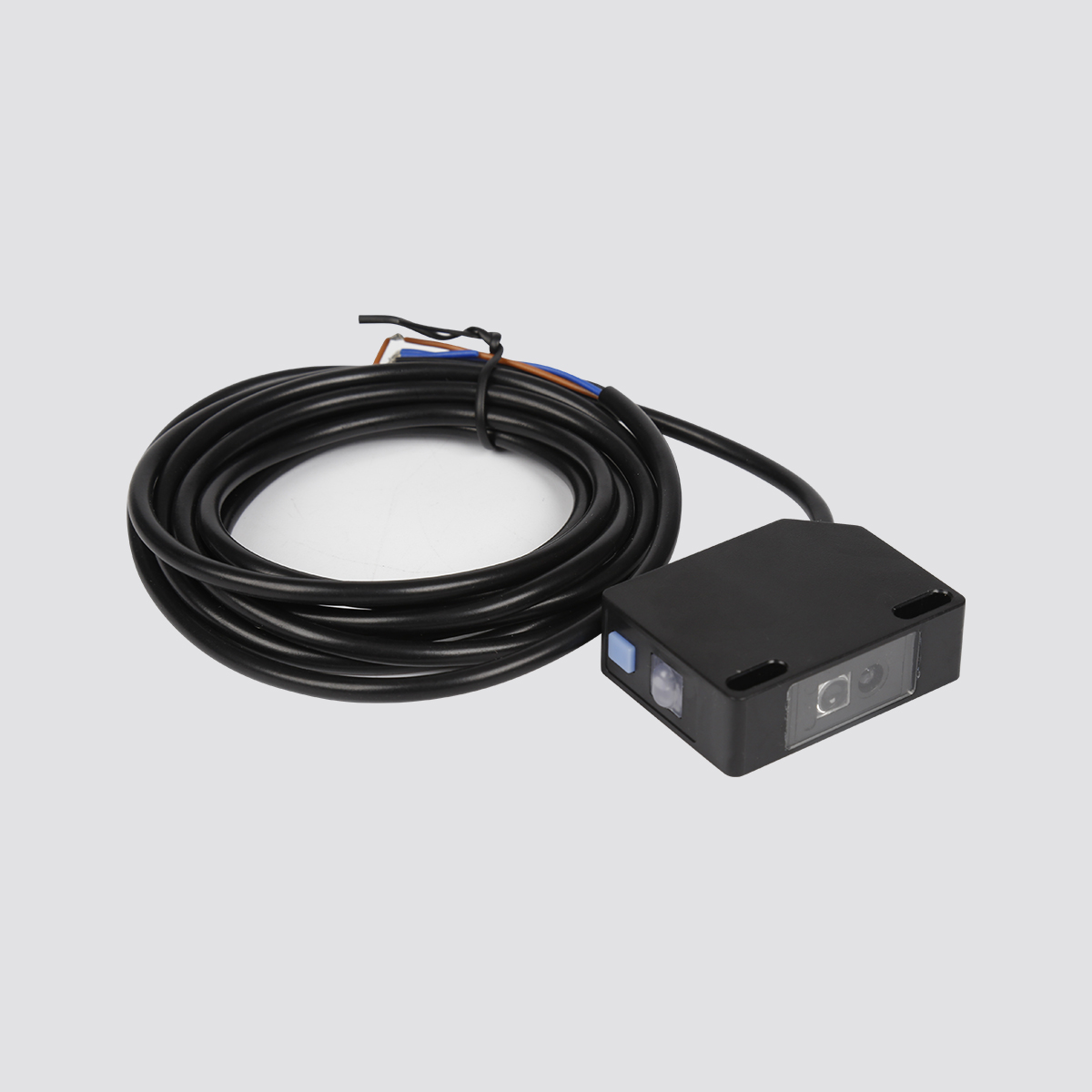

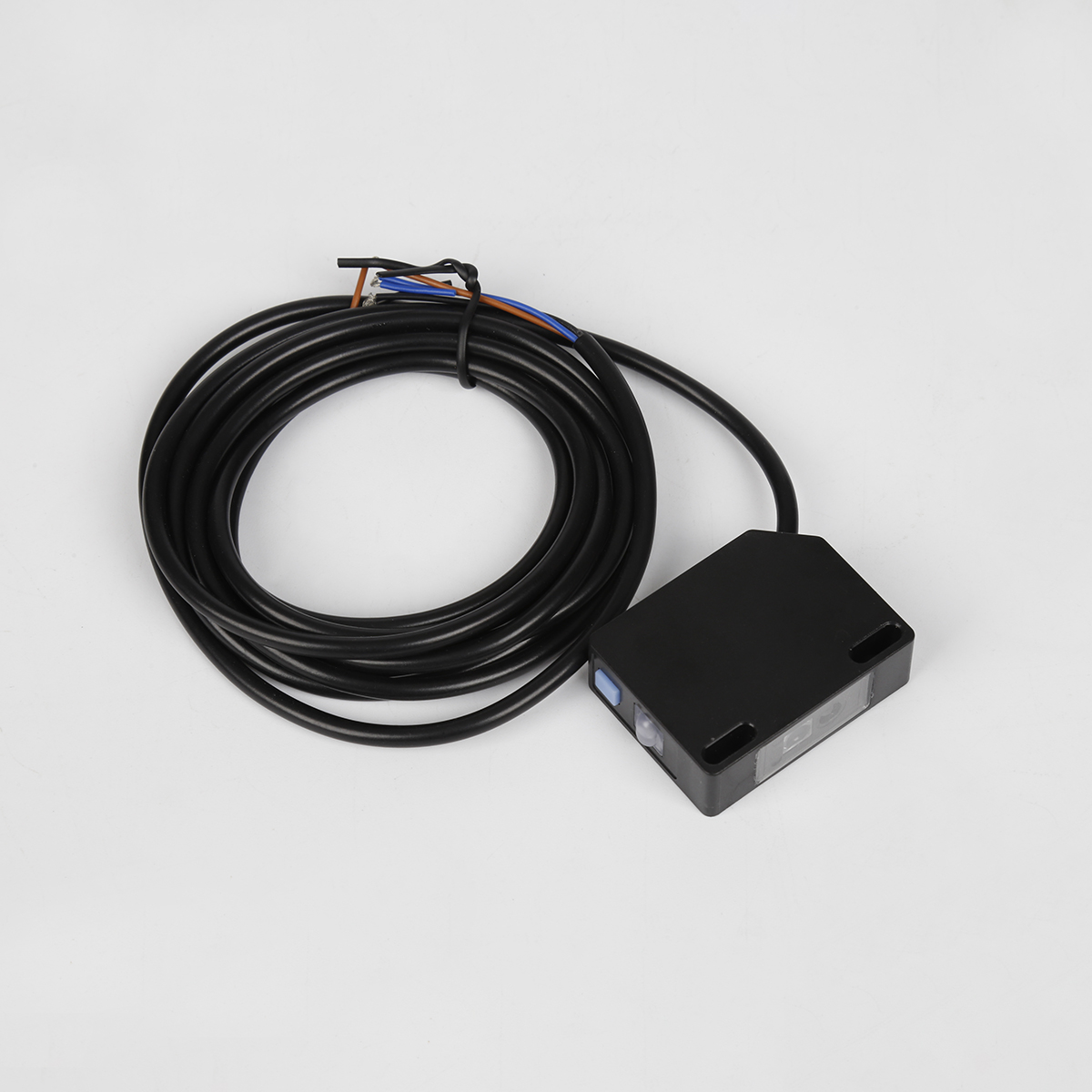

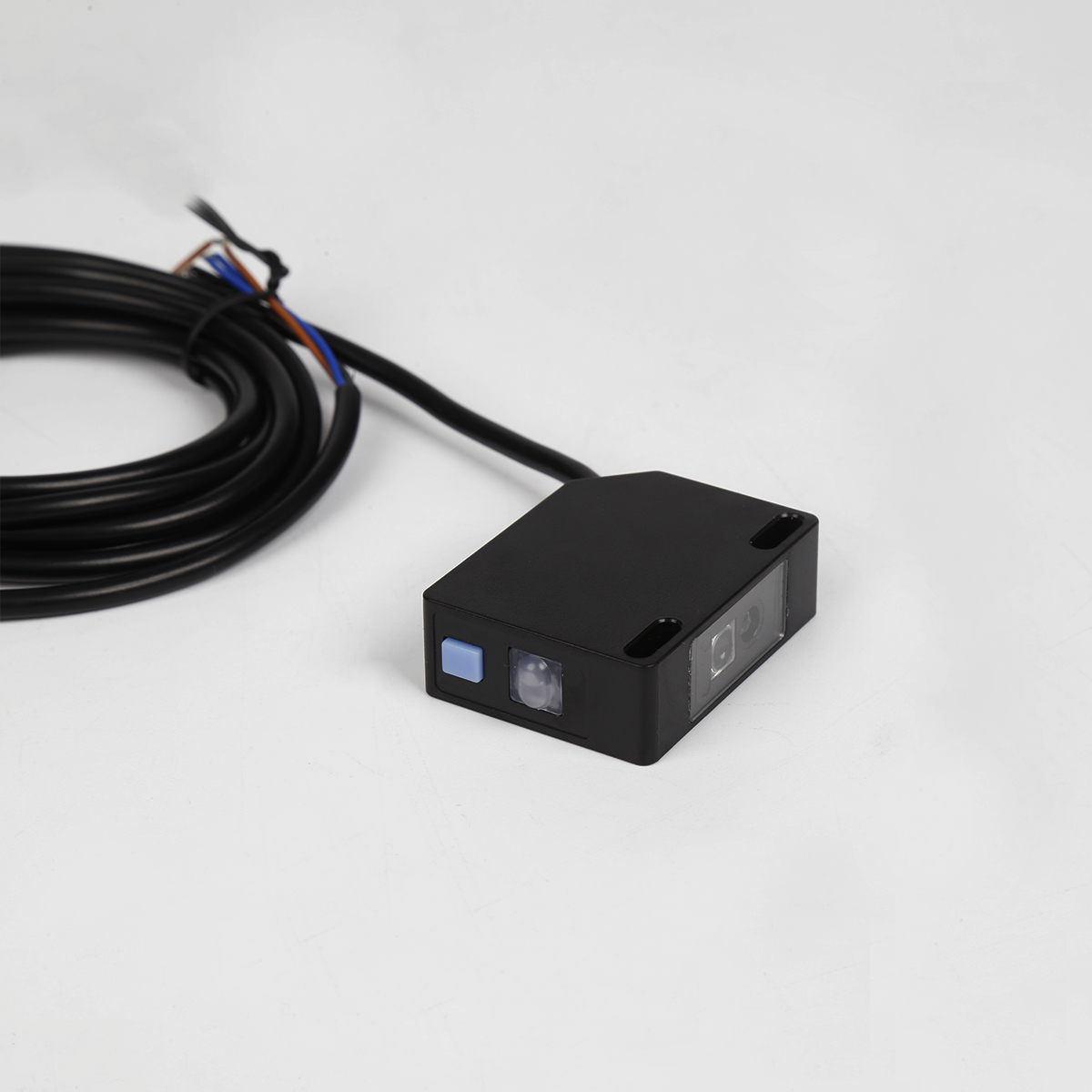

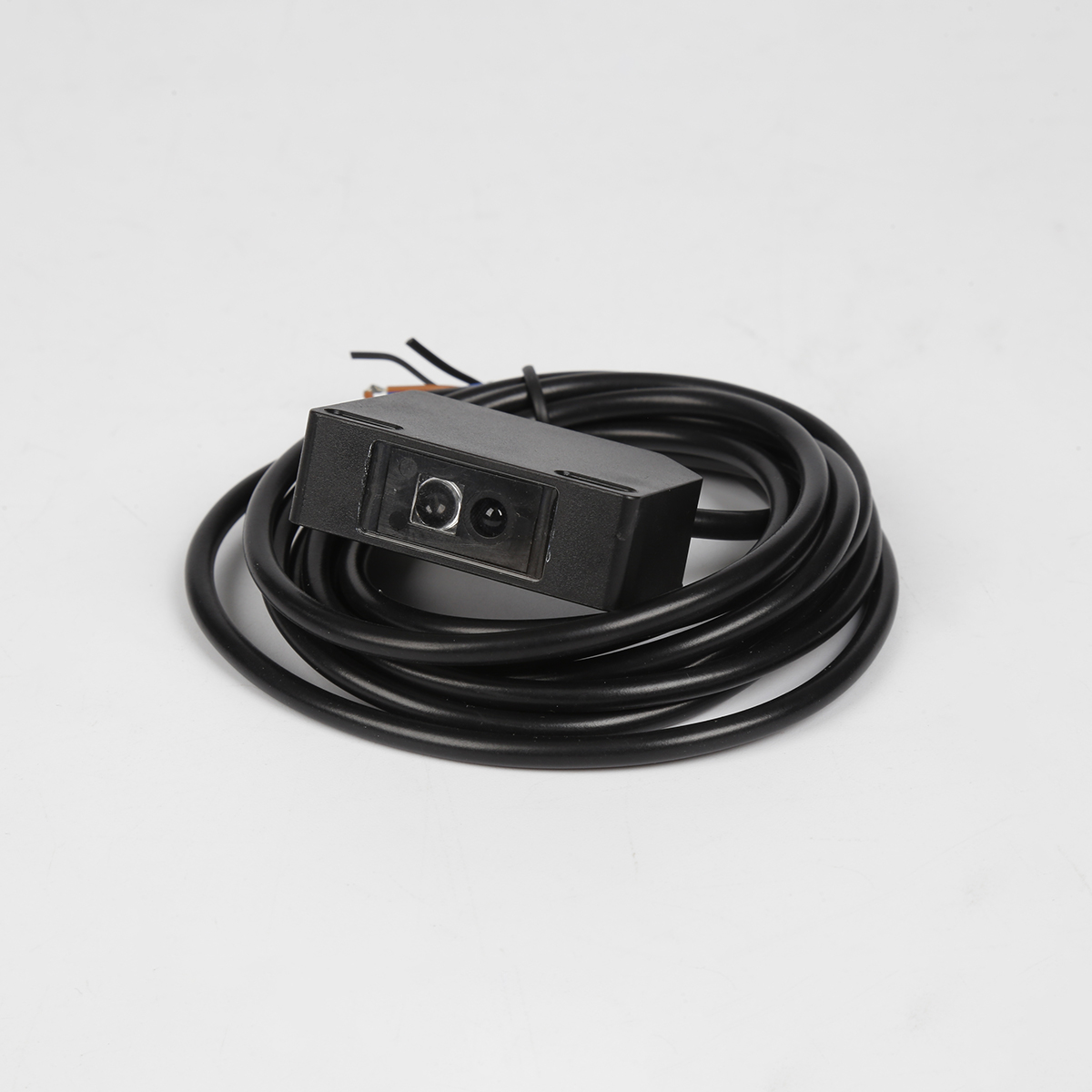

Product Detail

L5-A Type Selection Reference Table:

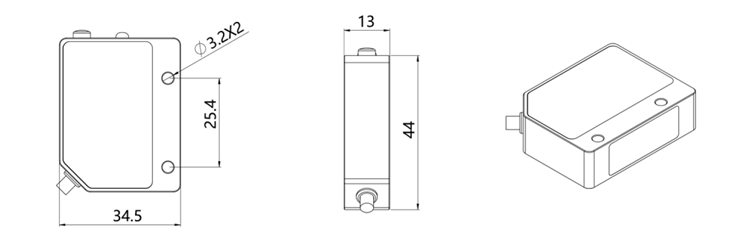

L5-A specification parameters:

Wiring mode:

Brown line-10 ~ 24vdc

Blue line-0vdc

Black line ----NPN output

White line ----PNP output

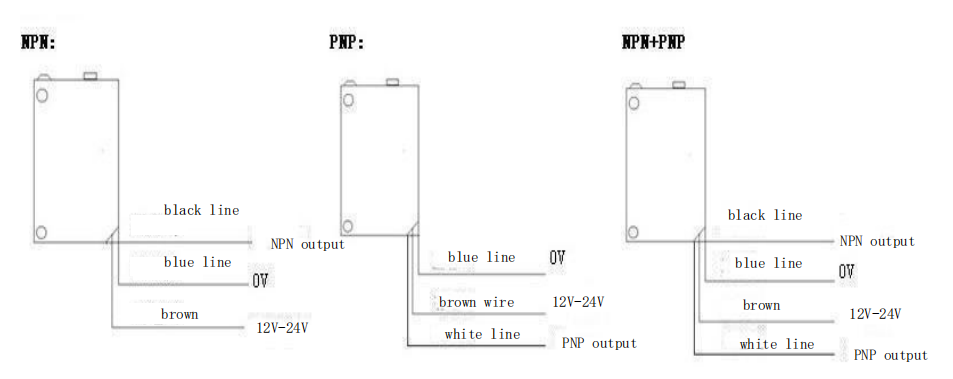

Wiring Drawings

Setting method:

1.Setting: After installation and fixation, aim the sensor at the detected object, press the setting button for 1~3 seconds and then release, and the indicator light flashes quickly. After the indicator light is stable, the set object can be stably detected in the set position.

2.Normally open and normally closed switch: hold down the button for 10~15 seconds and then release it, the color of indicator light changes, and the mode switch is successful.

Use tips and suggestions:

1.Please do not direct strong light into the receiving and emitting mirror of the sensor.

2.During use, if the receiving and emitting mirror surface of the sensor is condensed or contaminated with oil or dust, please wipe the mirror surface with clean, dry and soft cloth, which can restore normal work.

3.If the sensor works in a working environment where oil stains or dust spread, please keep the mirror of the sensor clean.

4.It is forbidden to aim the laser beam at the human body, especially the eyes.

5.If there are frequent large-scale light changes in the use environment, or there are many highly reflective items, or people or materials will pass through the opposite side of the sensor, it is recommended to set a fixed light shield on the opposite side of the sensor to ensure the reliability.

Product assurance

1.Shelf life: From the date of shipment of this product, the shelf life is one year. If the product fails due to quality problems, the product will be exchanged for free within one year.

2.Non-warranty scope: the product performance and specifications are defined in the manual, and only the specifications and performance of this manual are used for warranty. Our company can provide technical support and suggestions for improvement for customers' improper use or mismatch of specifications and models, but it does not promise unconditional warranty.
