Product Detail

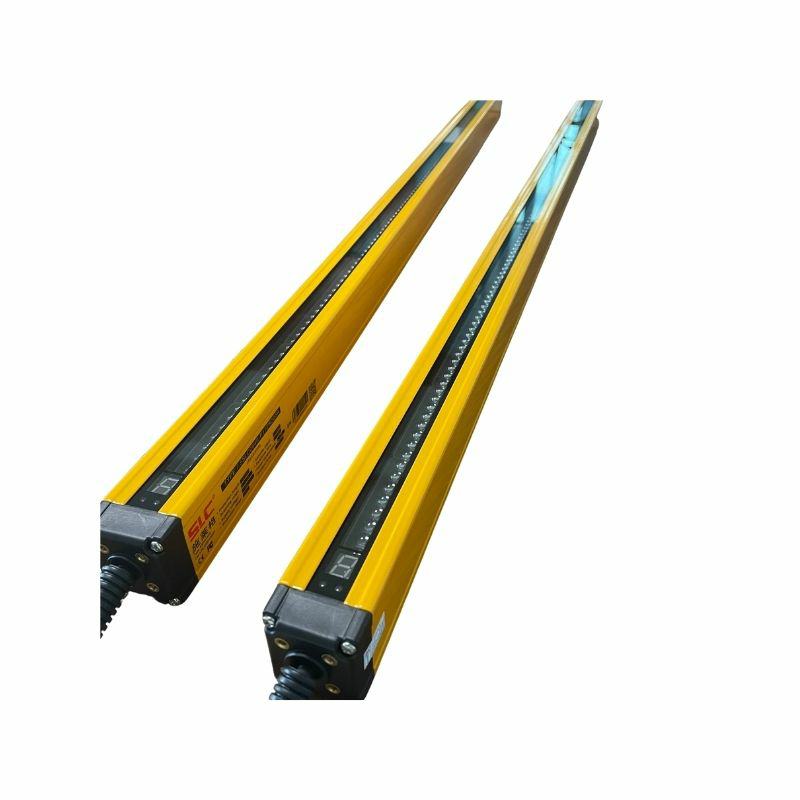

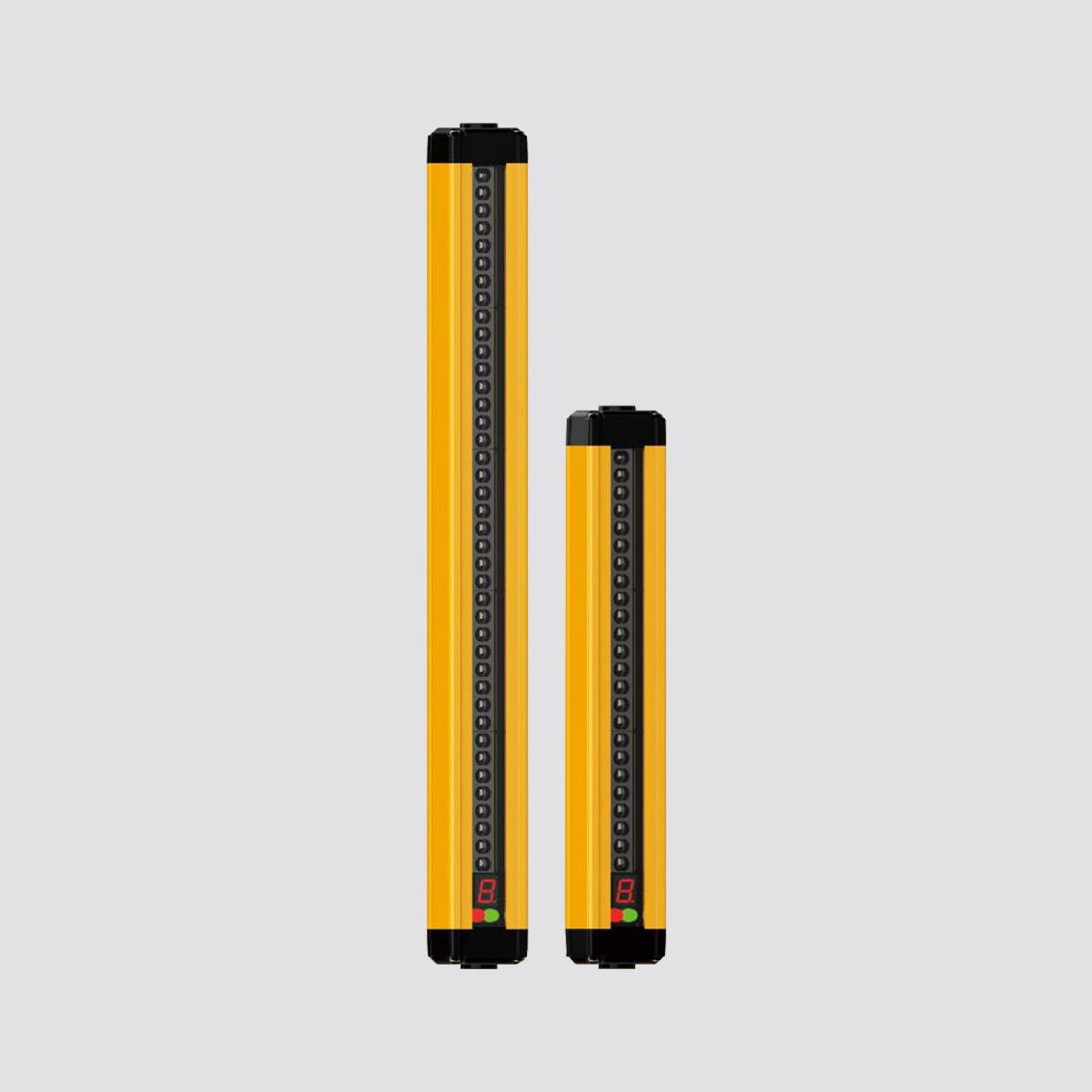

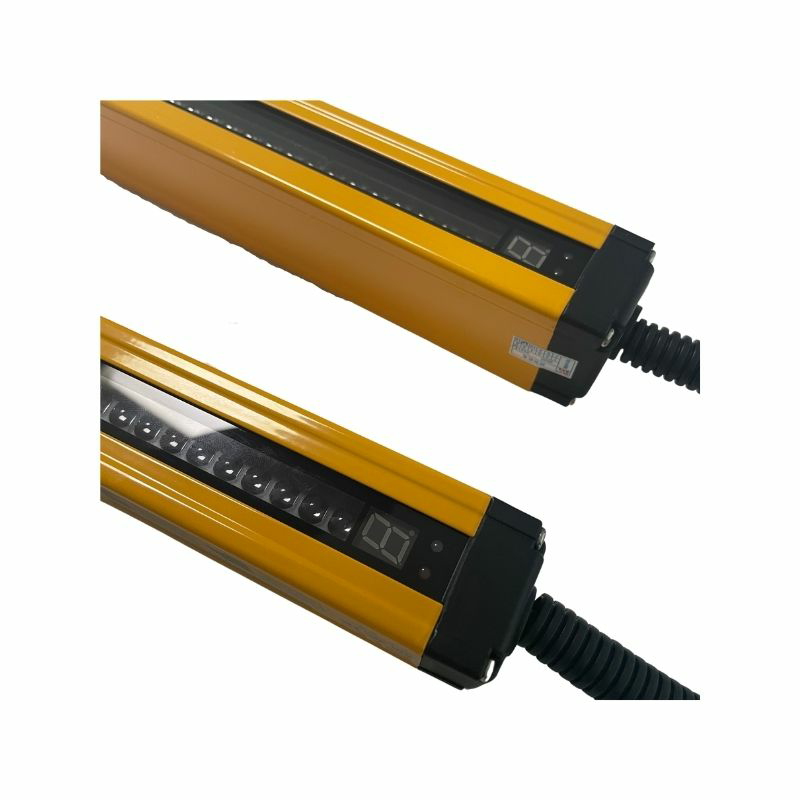

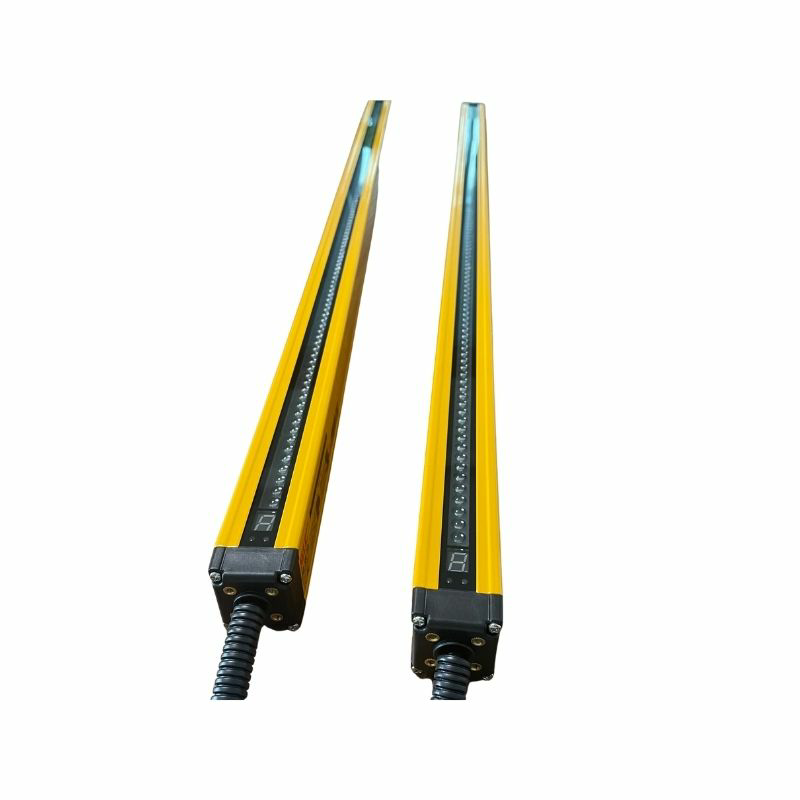

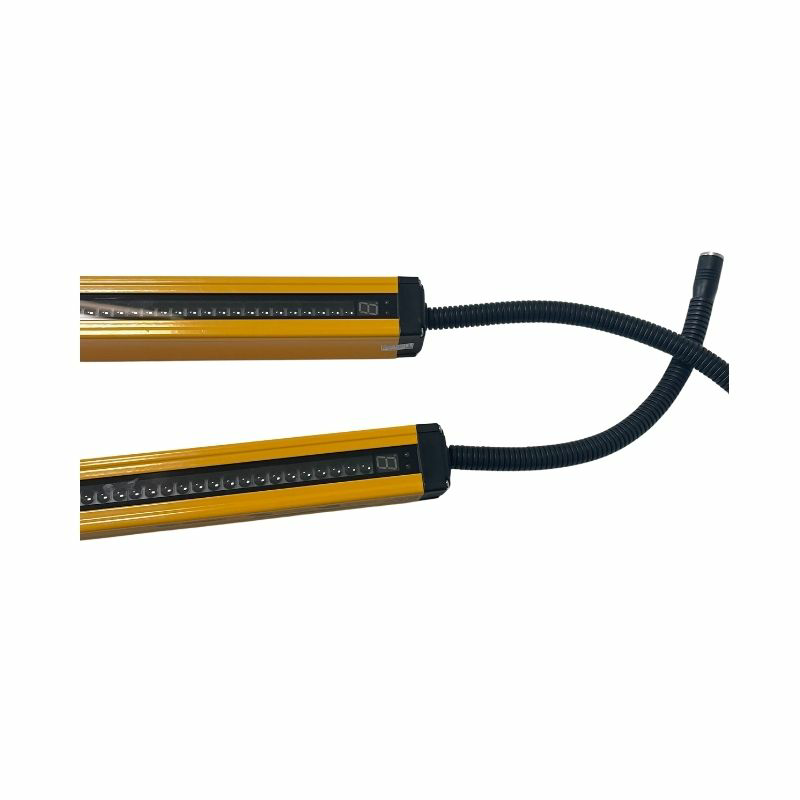

The Features and Advantage
SLC series light curtain is Type 4 safety light curtain which conformed to international safety standard EN61496-1/2. SLC safety light curtain builds a safe workplace to customers. It is with the following advantages:
● System Failure detection
SLC series of safety light curtain is with CPU self-test function, when their own failure (such as the light is not synchronized, the light intensity is not enough, cast light drive circuit error, the main control circuit error，cable problems, and receive drive circuit error，CPU error) to ensure that the equipment is not issued tothe wrong status, to ensure product safety.
● lndependent double OSSD output
In order to meet the requirements of the safety standard, please use the two channel system (connects the two OSSD independently) connection (the dual redundant system will improve the safety performance). System can drive safety Relay or PLC directly.
● OSSD Self- diagnosis
The independent dual OSSD circuit has a self-diagnosis function, which system will close the OSSD output periodically in a very short time (does not affect the work) , and simultaneously check the feedback signal, if it does not detect the feedback signal , will stop the output.
● External Device Monitor (EDM)
The SLC safety light curtain monitors the "external relay contact status" in case contact adhesion. System will stop OSSD when detect the error EDM signal, to prevent the external relay contact adhesion.
● Short Protection and Overload Protection
When the safety light curtain output will turn off the output due to overload or short circuit.
● Modulation Frequency
Adjacent light curtains can be set to different frequencies, thus preventing interference with the same frequency.
● Anti-light interference and environmental adaptability
● Fast Response
The response time of all safety light curtains is within 23ms.
● Easy Maintain
Easy to get the status or figure out the problem of the SLC safety light curtain by observing the indication of the 7-saegment digital and LED lights.
● Self- diagnosis
Self- diagnosis is performed on the power up (within 2 seconds). Self- diagnosis (reaction time) is performed periodically during normal operation.

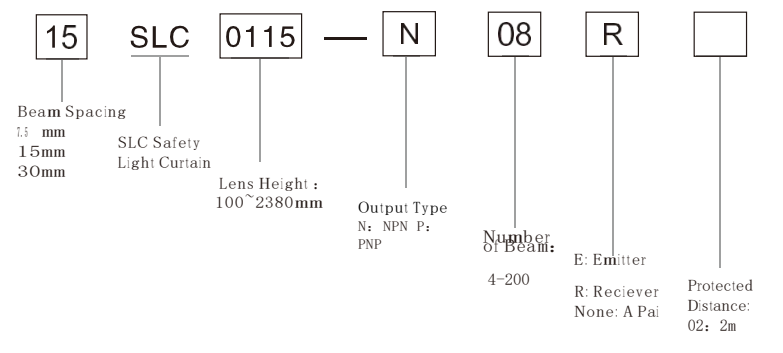

Ordering information
SLC safety light curtain OSDD

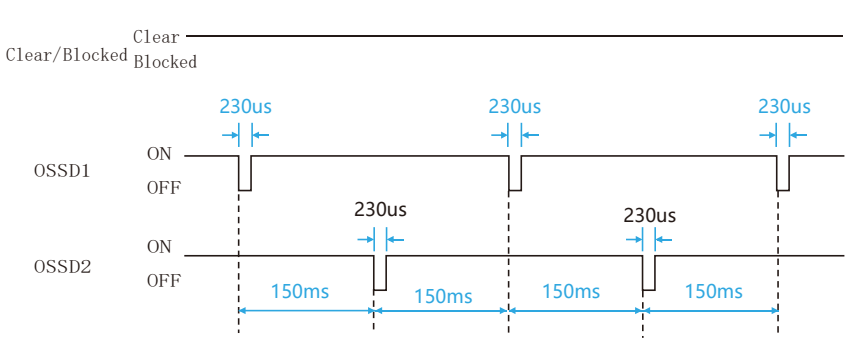

There are self-diagnosis in OSSDs output of SLC safety light curtain. OSSDs will be turn on when the protection area is clear. during OSSDs turned on period, the controller of SLC will periodically shuts down OSSD1 and OSSD2 in sequence.During the short period of shutdown of OSSD1 or OSSD2, the internal timing control unit of the SLC detects whether the level of OSSD1 or OSSD2 has flipped. If the flip occurs, the corresponding OSSD swich is in normal working state; if the OSSD fails, the system will immediately shut down the two channels of OSSD.At this time, the receiving SLC displays "d." Or 'H." to ensure functional safety. Therefore, when the load connected to the SLC is a PLC or an MCU controlled fast intelligent device it is necessary to filter the self-check pulse in the program.
SLC Connection Diagram
NPN Output (Interlock,reset and Test )Function
Name | Colour | Ecplanation |
Emitter | Brown | DC 24V |
Blue | 0V |
Orange | Testing signal，Low level is valid ; Normal working connects to 24V. |
Receiver | Brown | DC 24V |
Blue | 0V |
Black | OSSD1 Safety Output 1 |
White | OSSD2 Safety Output 2 |
Yellow | EDM External Device Monitor ; Serialize Relay's NC contacts and 0V; If it is not used, connect to 0V. |

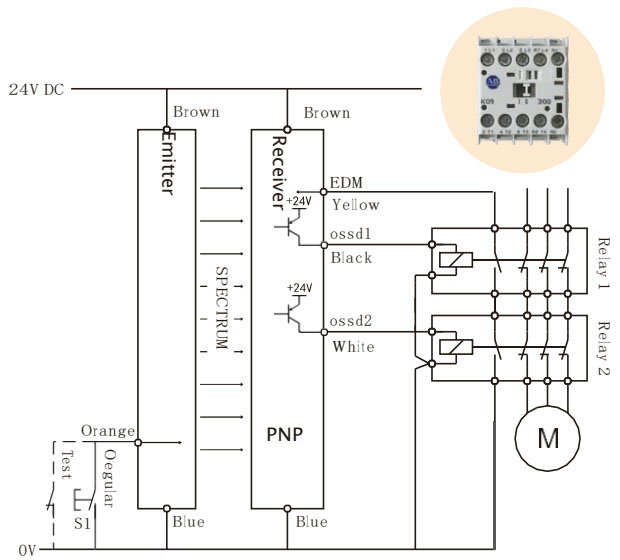

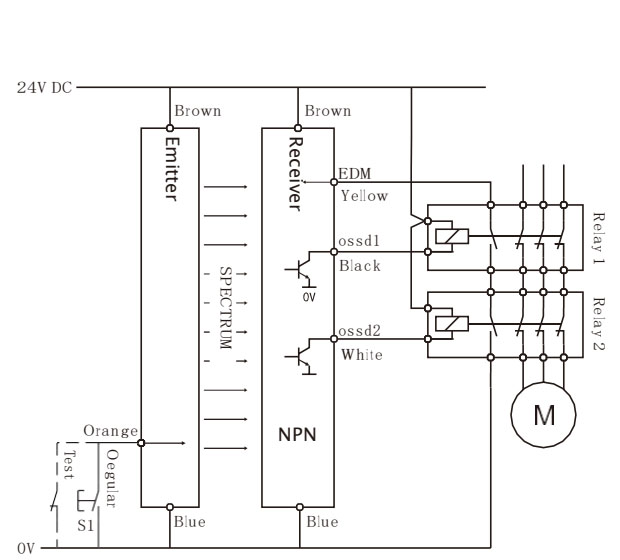

SLC （NPN Type ) Connection with dual-Relay | SLC （PNP Type ) Connection with dual-Relay |
|
|
SLC （NPN Type ) Connection with Controller | SLC （PNP Type ) Connection with Controller |
|
|

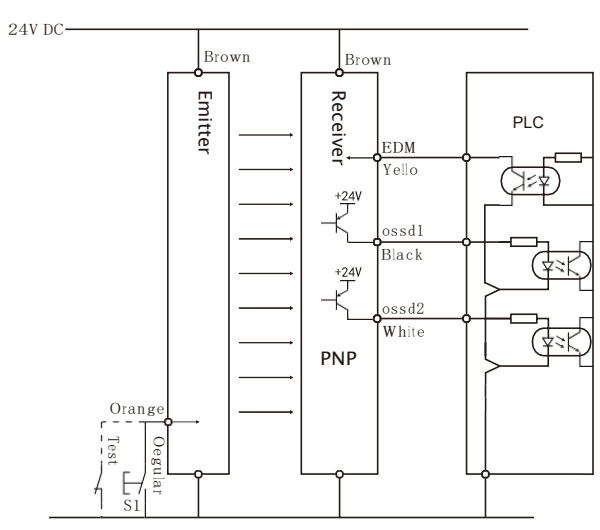

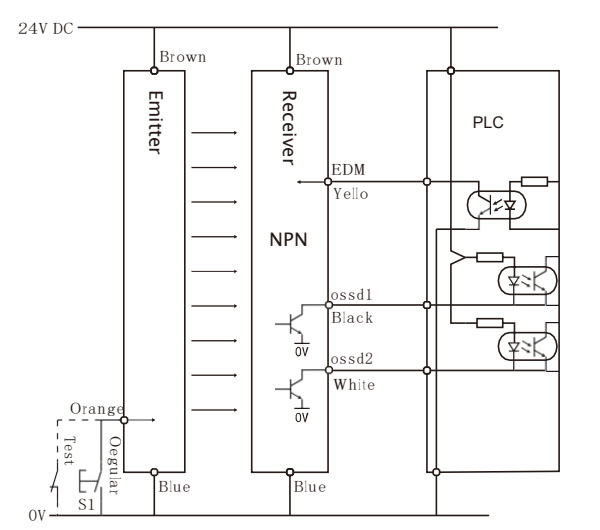

SLC （NPNType ) Connection with PLC | SLC （PNP Type） Connection with PLC |
|
|
The Reference Program of SLC (NPN Type) Connection with PLC
PLC Logical Truth Table
OSSD1 | OSSD2 | EDM | Y1 | Y2 | SLC Work State |
0 | 0 | 1
| 0 | 0 | SLC blocked, normal State |
0 | 1 | 0 | 0 | 0 | Failure |
1 | 0 | 0 | 0 | 0 | Failure |
1 | 1 | 0 | 1 | 1 | SLC Clear, Normal State |
Note: OSSD1/2 input signal from SLC Output;
EDM Output signal that feed back to SLC from PLC ;
Y1/Y2 Output from PLC,
“0”OFF，“1”ON.

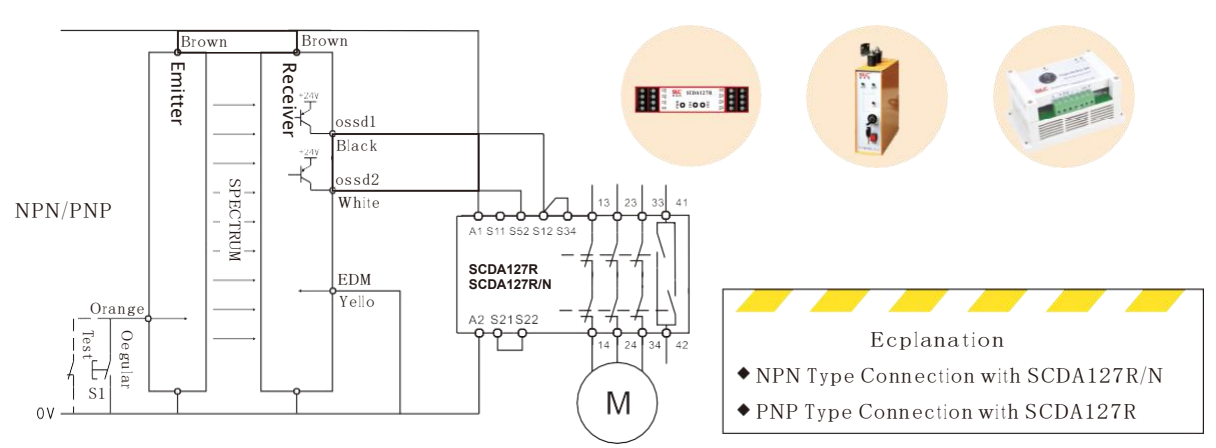

SLC （PNP/NPN Type ) Connection with Safety Relay
SLC Model and Selection Guide
SLC safety Light Curtain ( Optical Axis Space: 7.5mm，Resolution: 12.5mm，Standard)
Type：Pinky Type r / Smallest Detectable Substance 12.5mm (7.5mm Optical Axis Space)

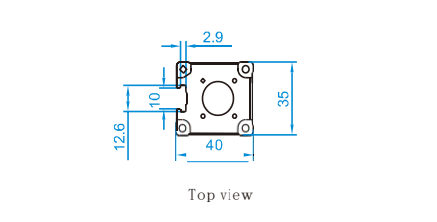

Outline
| Model (PNP) | Model (NPN) | Number | Protected Hight(mm) | Dimension(mm) |
| 7.5SLC0120-P16 | 7.5SLC0120-N16 | 16 | 127.5 | 40*35*181 |
7.5SLC0180-P24 | 7.5SLC0180-N24 | 24 | 187.5 | 40*35*241 |
7.5SLC0240-P32 | 7.5SLC0240-N32 | 32 | 247.5 | 40*35*301 |
7.5SLC0300-P40 | 7.5SLC0300-N40 | 40 | 307.5 | 40*35*361 |
7.5SLC0360-P48 | 7.5SLC0360-N48 | 48 | 267.5 | 40*35*421 |
7.5SLC0420-P56 | 7.5SLC0420-N56 | 56 | 427.5 | 40*35*481 |
7.5SLC0480-P64 | 7.5SLC0480-N64 | 64 | 487.5 | 40*35*541 |
7.5SLC0540-P72 | 7.5SLC0540-N72 | 72 | 547.5 | 40*35*601 |
7.5SLC0600-P80 | 7.5SLC0600-N80 | 80 | 607.5 | 40*35*661 |
7.5SLC0660-P88 | 7.5SLC0660-N88 | 88 | 667.5 | 40*35*721 |
7.5SLC0720-P96 | 7.5SLC0720-N96 | 96 | 727.5 | 40*35*781 |
7.5SLC0780-P104 | 7.5SLC0780-N104 | 104 | 787.5 | 40*35*841 |
7.5SLC0840-P112 | 7.5SLC0840-N112 | 112 | 847.5 | 40*35*901 |
7.5SLC0900-P120 | 7.5SLC0900-N120 | 120 | 907.5 | 40*35*961 |
7.5SLC0960-P128 | 7.5SLC0960-N128 | 128 | 967.5 | 40*35*1021 |
7.5SLC1020-P136 | 7.5SLC1020-N136 | 136 | 1027.5 | 40*35*1081 |
7.5SLC1080-P144 | 7.5SLC1080-N144 | 144 | 1087.5 | 40*35*1141 |
7.5SLC1140-P152 | 7.5SLC1140-N152 | 152 | 1147.5 | 40*35*1201 |
7.5SLC1200-P160 | 7.5SLC1200-N160 | 160 | 1207.5 | 40*35*1261 |
7.5SLC1260-P168 | 7.5SLC1260-N168 | 168 | 1267.5 | 40*35*1321 |
7.5SLC1320-P176 | 7.5SLC1320-N176 | 176 | 1327.5 | 40*35*1381 |
7.5SLC1380-P184 | 7.5SLC1380-N184 | 184 | 1387.5 | 40*35*1441 |
7.5SLC1440-P192 | 7.5SLC1440-N192 | 192 | 1447.5 | 40*35*1501 |
7.5SLC1500-P200 | 7.5SLC1500-N200 | 200 | 1507.5 | 40*35*1561 |
Notes: ◎Protected Hight: The Detectable Effective Hight of Rod=(n+1)XOptical Axis space-0.5mm
◎A Set of Light curtian include: Apair of Cable，A pair of mounting brackets at both ends，4 Sliders
◎The Standard Protect Distance is 0.1~4M (Can be). ◎n: Number of Optical Axis
SLC safety Light Curtain (Optical Axis Space: 15mm，Resolution: 20mm，Standard)
Type：Thumb type / Smallest Detectable Substance 20mm (15mm Optical Axis Space)
Outline | Model (PNP) | Model (NPN) | Number | Protected Hight(mm) | Dimension(mm) |

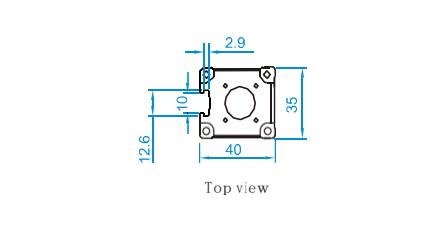

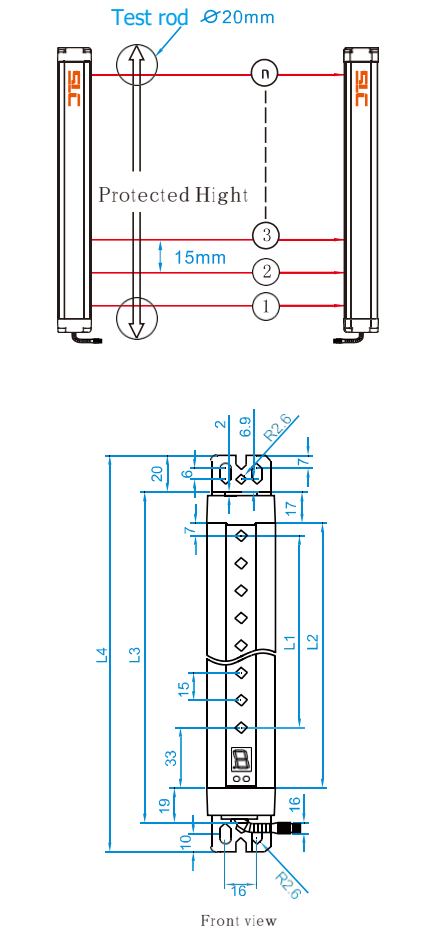

L1: Detection A= (Axis Number -1) *15mm L2: length of Shell L2= Axis Number*15+25mm L3: Total Length L3=L2+36mm L4: Total Length including Mounting Bracket :L4=L3+74mm
Note:the cable length 225mm; call us for 3D Drawing; | 15SLC0115-P08 | 15SLC0115-N08 | 8 | 135 | 40*35*181 |
15SLC0175-P12 | 15SLC0175-N12 | 12 | 195 | 40*35*241 |
15SLC0235-P16 | 15SLC0235-N16 | 16 | 255 | 40*35*301 |
15SLC0295-P20 | 15SLC0295-N20 | 20 | 315 | 40*35*361 |
15SLC0355-P24 | 15SLC0355-N24 | 24 | 375 | 40*35*421 |
15SLC0415-P28 | 15SLC0415-N28 | 28 | 435 | 40*35*481 |
15SLC0475-P32 | 15SLC0475-N32 | 32 | 495 | 40*35*541 |
15SLC0535-P36 | 15SLC0535-N36 | 36 | 555 | 40*35*601 |
15SLC0595-P40 | 15SLC0595-N40 | 40 | 615 | 40*35*661 |
15SLC0655-P44 | 15SLC0655-N44 | 44 | 675 | 40*35*721 |
15SLC0715-P48 | 15SLC0715-N48 | 48 | 735 | 40*35*781 |
15SLC0775-P52 | 15SLC0775-N52 | 52 | 795 | 40*35*841 |
15SLC0835-P56 | 15SLC0835-N56 | 56 | 855 | 40*35*901 |
15SLC0895-P60 | 15SLC0895-N60 | 60 | 915 | 40*35*961 |
15SLC0955-P64 | 15SLC0955-N64 | 64 | 975 | 40*35*1021 |
15SLC1015-P68 | 15SLC1015-N68 | 68 | 1035 | 40*35*1081 |
15SLC1075-P72 | 15SLC1075-N72 | 72 | 1095 | 40*35*1141 |
15SLC1135-P76 | 15SLC1135-N76 | 76 | 1155 | 40*35*1201 |
15SLC1195-P80 | 15SLC1195-N80 | 80 | 1215 | 40*35*1261 |
Notes:◎Protected Hight: The Detectable Effective Hight of Rod= (n+1)XOptical Axis space
◎The Standard Protect Distance is 0.1~6M (Can be Customized )
◎n: Number of Optical Axis
◎A Set of Light curtain include: A pair of Cable，A pair of mounting brackets at both ends，4 Sliders

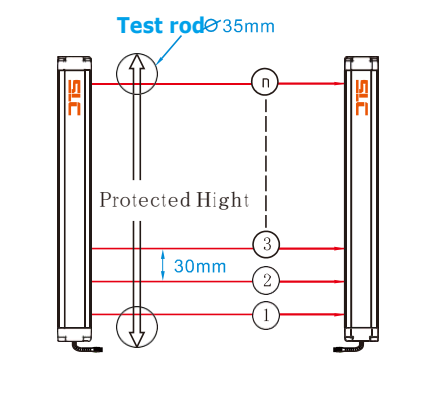

SLC safety Light Curtain (Optical Axis Space 30mm，Resolution: 35mm，Standard)
Type：Palm Type / Smallest Detectable Substance 35mm (30mm Optical Axis Space)
Outline | Model (PNP) | Model (NPN) | Number | Protected Hight(mm) | Dimension(mm) |

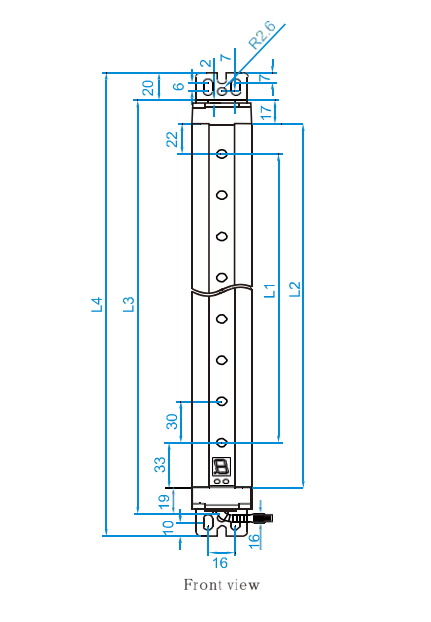

L1: Detection Height A= (Axis Number-1） *30mm L2: Length of Shell L2= Axis Number *30+25mm L3: Total Length L3=L2+36mm L4: Total Length including Mounting Bracket :L4=L3+74mm
Note: the cable length 225mm; call us for 3D Drawing; | 30SLC0100-P04 | 30SLC0100-N04 | 4 | 150 | 40*35*181 |
30SLC0160-P06 | 30SLC0160-N06 | 6 | 210 | 40*35*241 |
30SLC0220-P08 | 30SLC0220-N08 | 8 | 270 | 40*35*301 |
30SLC0280-P10 | 30SLC0280-N10 | 10 | 330 | 40*35*361 |
30SLC0340-P12 | 30SLC0340-N12 | 12 | 390 | 40*35*421 |
30SLC0400-P14 | 30SLC0400-N14 | 14 | 450 | 40*35*481 |
30SLC0460-P16 | 30SLC0460-N16 | 16 | 510 | 40*35*541 |
30SLC0520-P18 | 30SLC0520-N18 | 18 | 570 | 40*35*601 |
30SLC0580-P20 | 30SLC0580-N20 | 20 | 630 | 40*35*661 |
30SLC0640-P22 | 30SLC0640-N22 | 22 | 690 | 40*35*721 |
30SLC0700-P24 | 30SLC0700-N24 | 24 | 750 | 40*35*781 |
30SLC0760-P26 | 30SLC0760-N26 | 26 | 810 | 40*35*841 |
30SLC0820-P28 | 30SLC0820-N28 | 28 | 870 | 40*35*901 |
30SLC0880-P30 | 30SLC0880-N30 | 30 | 930 | 40*35*961 |
30SLC0940-P32 | 30SLC0940-N32 | 32 | 990 | 40*35*1021 |
30SLC1000-P34 | 30SLC1000-N34 | 34 | 1050 | 40*35*1081 |
30SLC1060-P36 | 30SLC1060-N36 | 36 | 1110 | 40*35*1141 |
30SLC1120-P38 | 30SLC1120-N38 | 38 | 1170 | 40*35*1201 |
30SLC1180-P40P | 30SLC1180-N40 | 40 | 1230 | 40*35*1261 |
30SLC1240-P42 | 30SLC1240-N42 | 42 | 1290 | 40*35*1321 |
30SLC1300-P44 | 30SLC1300-N44 | 44 | 1350 | 40*35*1381 |
30SLC1360-P46 | 30SLC1360-N46 | 46 | 1410 | 40*35*1441 |
30SLC1420-P48 | 30SLC1420-N48 | 48 | 1470 | 40*35*1501 |
30SLC1480-P50 | 30SLC1480-N50 | 50 | 1530 | 40*35*1561 |
30SLC1540-P52 | 30SLC1540-N52 | 52 | 1590 | 40*35*1621 |
30SLC1600-P54 | 30SLC1600-N54 | 54 | 1650 | 40*35*1681 |
30SLC1660-P56 | 30SLC1660-N56 | 56 | 1710 | 40*35*1741 |
30SLC1720-P58 | 30SLC1720-N58 | 58 | 1770 | 40*35*1801 |
30SLC1780-P60 | 30SLC1780-N60 | 60 | 1730 | 40*35*1861 |
30SLC1840-P62 | 30SLC1840-N62 | 62 | 1890 | 40*35*1921 |
30SLC1900-P64 | 30SLC1900-N64 | 64 | 1950 | 40*35*1981 |
30SLC1960-P66 | 30SLC1960-N66 | 66 | 2010 | 40*35*2041 |
30SLC2020-P68 | 30SLC2020-N68 | 68 | 2070 | 40*35*2101 |
30SLC2080-P70 | 30SLC2080-N70 | 70 | 2130 | 40*35*2161 |
30SLC2140-P72 | 30SLC2140-N72 | 72 | 2190 | 40*35*2221 |
30SLC2200-P74 | 30SLC2200-N74 | 74 | 2250 | 40*35*2281 |
30SLC2260-P76 | 30SLC2260-N76 | 76 | 2310 | 40*35*2341 |
30SLC2320-P78 | 30SLC2320-N78 | 78 | 2370 | 40*35*2401 |
30SLC2380-P80 | 30SLC2380-N80 | 80 | 2430 | 40*35*2461 |
Notes:◎Protected Hight: The Detectable Effective Hight of Rod=(n+1)XOptical Axis space
◎The Standard Protect Distance is 0.1~6M (Can be Customized )
◎n: Number of Optical Axis
◎A Set of Light curtain include: A pair of Cable，A pair of mounting brackets at both ends，4 Sliders
The selection Guide of Controller
Name | Shapel | Model | Description |
lnternal Controller |
| SCDA-220-NC | OUT is connection when work state; Load Capacity 5A，220VAC; Power: 220VAC |
SCDA-220-NO | OUT is Open when work state; Load Capacity 5A，220VAC; Power: 220VAC |
SCDA-224NC | Two set Light Curtin input; OUT is connection when work state; Load Capacity 5A， |
SCDA-224-NO | Two set Light Curtin input; OUT is Open when work state; Load Capacity 5A，220VAC; |
External Controller |
| SCD-24-SRA (Pumping Only | One safety Output that can only be setting to Open or Connection state when system is work properly , Load Capacity 10A，220vAC; One Auxiliary no safety output ,load capacity 500mA ; r: 24VDC |
SCD-220-SRA (Pumping Only | One safety Output that can only be setting to Open or Connection state when system is work properly , Load Capacity 10A，220VAC; One Auxiliary no safety output , load capacity 500mA ; Power : 220VAC |
Safety Relay |
| SCDA127R | Use with SLC，SLC-LP，SC Serials Safety PNP Output (See safety relay module information for details) |
SCDA127R/N | Use with SLC，SLC-LP，SC Serials Safety NPN Output(See safety relay module information for details) |
Notes: The model controller must be purchased separately
Accessories selection Guide (Order Separately)

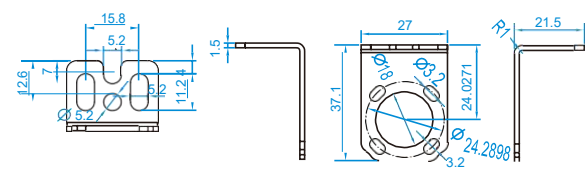

Name | Shapel | Model | Description | Outline | Number |
T-shape Bloc |

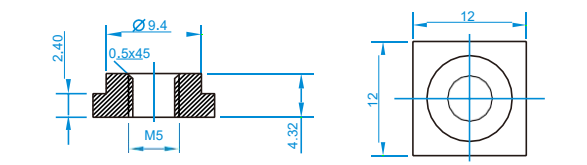

| SLCT-01 | For Slider |
| 4 |
Two-end Mounting Bracket |
| SLCD-01 | For SLC safety light Curtain Two-end |
| 4 |
5core 6-pin Cable |
| SCA5030 | 6-pin 3m cable, for SLC Receiver |
Max. wire diameter 16mm | Cable ordering information
Customizable for the length of | 1
|
3 core 4-pin cable |
| SCA3050 | 4-Pin ,5m cable; for SLC emitter Unit or LCM |
Max. wire diameter 16mm | 1 |
8 core 8-pin cable |
| SLC8060 | 8-Pin , 6m shielded cable; for SLC-LP |
Max. wire diameter 16mm | 2 |
3 core 4-pin cable |
| SCB4035 | 5-Pi n , 3.5 m shielded cable; For SCB LC safety light curtain |
Max. wire diameter 16mm | 1 |
2 core 3-pin cable |
| SCB3025 | 3-Pi n , 3.5 m shielded cable; For SCB LC safety light curtain |
Max. wire diameter 16mm | 1 |
SLC Technical Specification
SLC Safety Light Curtain ( 7.5/15/30mm） |
Standard | Compliance lEC61496-1,2 |
| Electrical Parameters |
authenticate | TUV，EN61496-1/2,FCC | Power Supply | 24VDC±10% |
Optical Parameters | Power Consumption | 5W |
Protected Hight | 127-2370mm | Response time | Less than 23m |
Protection Distance | 0.1-6m(2-20m) | Safety Output | 2 NPN or 2 PNP redundant outputs, short circuit protection, overload protection, pulse test |
Optical Axis | 4-80(7.5mm beaming space16-200) | Manual Reset or Interlock | Provide Manual Reset or lnterlock function at the receiving end, apply on the automatic line or large area position protection to ensure safe start |
Resolution | 12.5/20/35mm | Muting function | 0.1-3S Trigger time and Customizable recovery time |
Wavelength | 940nm | Optional Scan | Two scan code to choose from |
Synchronizati | Light Synchronization | Code Output feedback | EDM Signal of Relay Feedback |
Physical Character | Enclosure | IP65(Customizable IP67、IP69) |
Cross-sectional Dimension | 35mm*40mm | Operation Temp. | -10-55℃ |
lnstallation | L-shaped two-end installation; back slot installation | Storage Temp. | -20-70℃ |
Humidity | 15%-95% |
Weight | Change With Altitude | Shocking | 10g/20 ms |
Connection Type | Aviation Plug-in; Direction Outlet | Scan Time | Less than 12ms |
SLC Safety Light Curtain Display
Emitter Display
Display | State | Description |
| Power-up Self test | Green LED ON; |
| Test State | Green LED ON; 7-seg LED Display 1-A; |
| Power Supply Failure | Red LED ON; 7-Seg LED Display P |
| Selection Circuits Failure | Red LED ON; 7-Seg LED Display C |
| Output circuits Failure | Red LED ON; 7-Seg LED Display H |
| Emitter LED Failure | Red LED ON; 7-Seg LED Alternate Display Tens 0-8， Ones 0-9; |
Reciever Display Description
Display | State | Description |
| Normal State | Green LED ON; 7-Seg LED Display 9 |
| Synchronize Failure | Red LED ON; 7-Seg LED Display 0 |
| Blocked or Receive LED failure | Red LED ON; 7-Seg LED Display 1 |
| Power Supply Failure | Red LED ON; 7-Seg LED Display P |
| Selection Circuits Failure | Red LED ON; 7-Seg LED Display C |
| External Device Failure | Red LED ON; 7-Seg LED Display H |
| Failure of Output Overload or Short | Red LED ON; 7-Seg LED Display d. |
| Bus is disturbed | Red LED ON; 7-Seg LED Display F |
| OSSD self-diagnosis; Page12th for detail | Red LED ON; 7-Seg LED Display H |
+86-0755-29898410 +86-0755-29898460
ron@xaori.net
